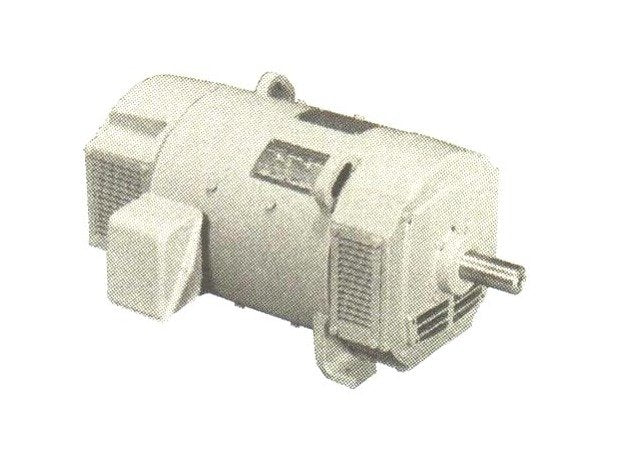

GE Self Ventilated DC Motor - Type C Power Supply
GE Self Ventilated DC Motor - Type C Power Supply
SKU:ELE-4d3fd7
Reliable GE Self Ventilated DC Motor with continuous torque, low inertia armature, and CSA Approval.
Regular price
$1,249.99
Regular price
Sale price
$1,249.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The GE Self Ventilated DC Motor - Type C Power Supply is a reliable and high-performance motor designed for a wide range of industrial applications. With continuous rated torque up to 60% of base speed and constant brush pressure, this motor ensures smooth and efficient operation. Its low inertia armature allows for quick responsiveness, while being capable of handling 150% of rated load for 60 seconds. Ideal for tropical climates, it features a normally-closed thermostat F-1 assembly and provisions for mounting a tachometer kit. CSA Approved for guaranteed quality and safety.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
5.1 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
16.8
Specifications Field Current
.30 amps | .55 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
186AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Self Ventilated
Specifications Weight
105 lbs
