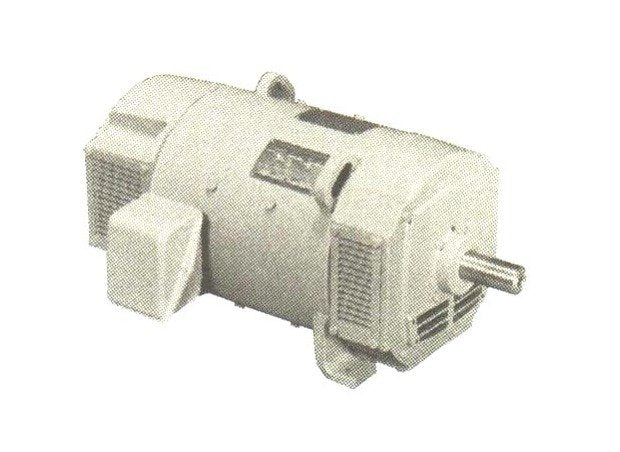

GE Self Ventilated DC Motor - Type C Power Supply, 500V
GE Self Ventilated DC Motor - Type C Power Supply, 500V
SKU:ELE-75005b
Discover the reliable GE Self Ventilated DC Motor - Type C Power Supply, ideal for demanding industrial applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
GE Self Ventilated DC Motor - Type C Power Supply, 500V
$2,999.99
Quantity: 1
Claim Your Seller Account
GE Self Ventilated DC Motor - Type C Power Supply, 500V
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Self Ventilated DC Motor, part of the GE Motors Type C Power Supply series, offers exceptional performance with continuous rated torque up to 60% of base speed. Featuring constant brush pressure, low inertia armature, and the capability to handle 150% of rated load for 60 seconds, this motor is suitable for demanding industrial applications. With CSA Approval and provisions for mounting a tachometer kit, this motor ensures reliable operation in tropical climates. The F-1 assembly with a normally-closed thermostat enhances safety and efficiency.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
42.7 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
31
Specifications Field Current
1.2 amps | 1.76 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
287AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Self Ventilated
Specifications Weight
493 lbs
