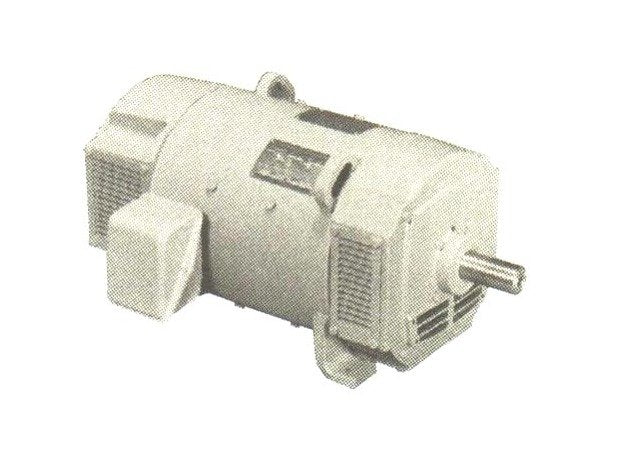

GE Self Ventilated DC Motor - Type C Power Supply
GE Self Ventilated DC Motor - Type C Power Supply
SKU:ELE-d6394c
GE Self Ventilated DC Motor - Type C Power Supply, continuous torque, low inertia, CSA Approved
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
GE Self Ventilated DC Motor - Type C Power Supply
$2,899.99
Quantity: 1
Claim Your Seller Account
GE Self Ventilated DC Motor - Type C Power Supply
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Self Ventilated DC Motor, designed for Type C Power Supply applications, offers superior performance with continuous rated torque up to 60% base speed and constant brush pressure. Its low inertia armature allows for efficient operation in demanding environments, with the capability to handle 150% of rated load for 60 seconds. Featuring a self-ventilated design ideal for tropical climates, this motor is CSA Approved and comes equipped with one normally-closed thermostat and F-1 assembly. With provisions for mounting a tachometer kit, it is a reliable choice for a range of industrial applications.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
50.4 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
32.7
Specifications Field Current
1.16 amps | 2.08 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
288AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Self Ventilated
Specifications Weight
548 lbs
