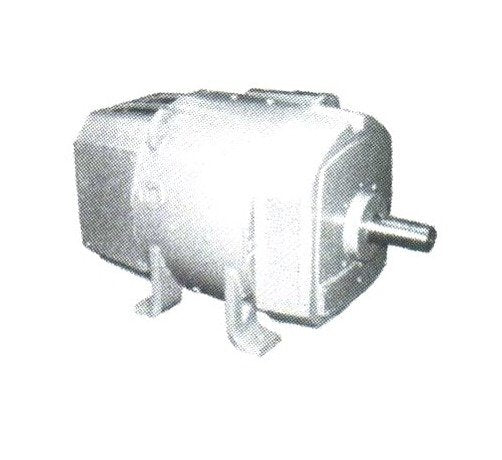

GE Separately Ventilated DC Motor - Type C Power Supply
GE Separately Ventilated DC Motor - Type C Power Supply
SKU:ELE-49b291
Get reliable performance with the GE Separately Ventilated DC Motor - Type C Power Supply, ideal for industrial applications.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The GE Separately Ventilated DC Motor, part of the GE Motors range, offers exceptional performance with continuous rated torque up to 60% of base speed. Featuring low inertia armature, constant brush pressure, and capability to handle 150% of rated load for 60 seconds, this motor is a reliable choice for industrial applications. With CSA approval and provisions for mounting a tachometer kit, it ensures efficient operations, making it suitable for a wide range of uses, including conveyors, textile machines, printing presses, and more.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
781 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
65.5
Specifications Field Current
6.8 amps | 8.1 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2DS
Specifications Nema Frame
5010AY
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Separately Ventilated
Specifications Weight
4260 lbs
