GE Separately Ventilated DC Motor - Type C Power Supply
GE Separately Ventilated DC Motor - Type C Power Supply
SKU:ELE-7ac105
Powerful GE Separately Ventilated DC Motor for industrial applications. CSA Approved & ideal for conveyors, textile machines, etc.
Regular price
$6,599.99
Regular price
Sale price
$6,599.99
Unit price
per
Initiate Order
GE Separately Ventilated DC Motor - Type C Power Supply
$6,599.99
Quantity: 1
Claim Your Seller Account
GE Separately Ventilated DC Motor - Type C Power Supply
$6,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

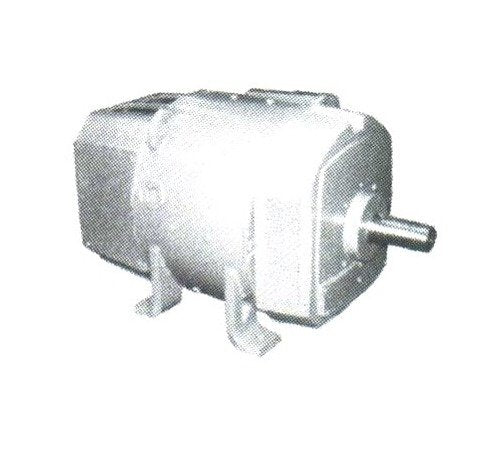

The GE Separately Ventilated DC Motor is a powerhouse designed to deliver continuous rated torque to 60% of base speed, ensuring optimal performance in demanding industrial environments. With features like constant brush pressure, low inertia armature, and the ability to handle 150% of rated load for 60 seconds, this motor is built for reliability and efficiency. Suitable for tropical climates and equipped with a normally-closed thermostat F-1 assembly, this CSA Approved motor offers dependable operation in a wide range of applications including conveyors, textile machines, printing presses, and more.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
202 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
38.9
Specifications Field Current
3.0 amps | 3.8 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
368AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Separately Ventilated
Specifications Weight
1020 lbs
