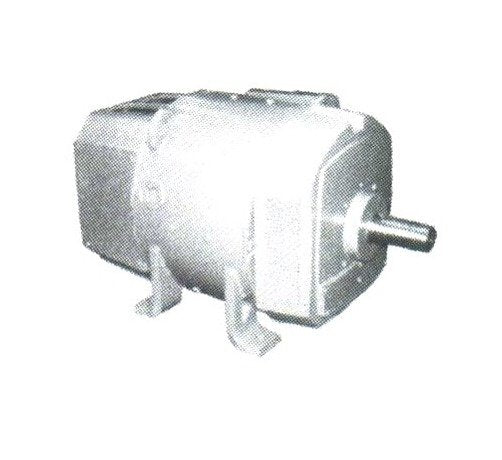

GE Separately Ventilated DC Motor - Type C Power Supply, 500V, CSA Approved
GE Separately Ventilated DC Motor - Type C Power Supply, 500V, CSA Approved
SKU:ELE-ec3acd
Performance-driven GE Separately Ventilated DC Motor for industrial applications. CSA Approved.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
GE Separately Ventilated DC Motor - Type C Power Supply, 500V, CSA Approved
$1,599.99
Quantity: 1
Claim Your Seller Account
GE Separately Ventilated DC Motor - Type C Power Supply, 500V, CSA Approved
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Separately Ventilated DC Motor, part of the Type C Power Supply line, is engineered with continuous rated torque up to 60% base speed for optimal performance. Featuring low inertia armature and constant brush pressure, this motor is designed to handle up to 150% of rated load for 60 seconds. It is suitable for tropical climates, equipped with one normally-closed thermostat F-1 assembly, and provisions for mounting a tachometer kit. CSA Approved for reliable quality assurance.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
17.2 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
25.2
Specifications Field Current
.88 amps | 1.35 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
219AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Separately Ventilated
Specifications Weight
252 lbs
