GE Separately Ventilated DC Motor - Type C Power Supply
GE Separately Ventilated DC Motor - Type C Power Supply
SKU:ELE-d5ae10
Powerful GE Separately Ventilated DC Motor designed for optimal performance in demanding environments. CSA approved with low inertia armature & 150% load capacity.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
GE Separately Ventilated DC Motor - Type C Power Supply
$4,999.99
Quantity: 1
Claim Your Seller Account
GE Separately Ventilated DC Motor - Type C Power Supply
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

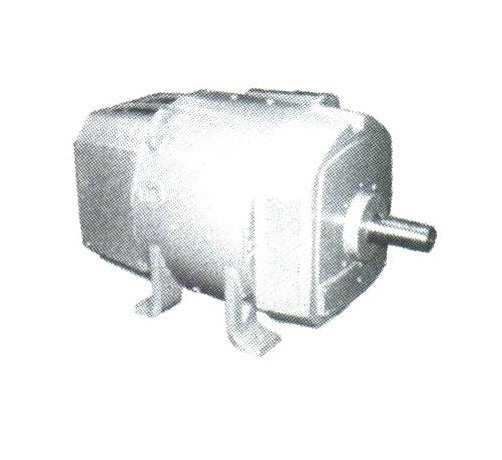

The GE Separately Ventilated DC Motor, part of the Type C Power Supply line, offers superior performance with continuous rated torque to 60% base speed and constant brush pressure. Designed with a low inertia armature, it can handle up to 150% of rated load for 60 seconds. This motor is CSA approved and features provisions for mounting a tachometer kit. Ideal for tropical climates, it includes one normally-closed thermostat and F-1 assembly, making it suitable for a wide range of applications.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
318 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
48.1
Specifications Field Current
4.6 amps | 6.1 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
L409AT
Specifications Normally Stocked
Yes
Specifications Style
Shunt Wound - Dripproof Fully Guarded - Separately Ventilated
Specifications Weight
1650 lbs
