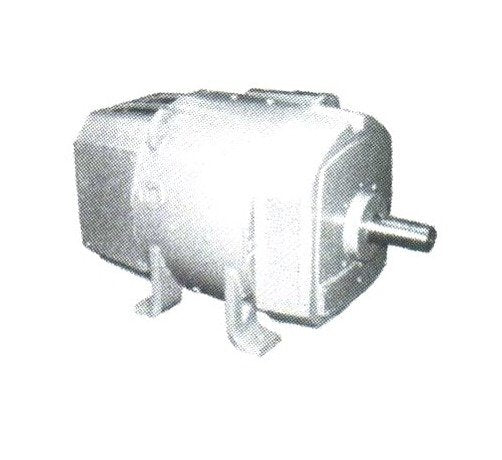

GE Separately Ventilated DC Motor with Type C Power Supply

Name: GE Separately Ventilated DC Motor with Type C Power Supply
Brand: Gainesville Industrial Electric Co.
SKU: ELE-66122b
Price: 899.99 USD
Availability: OutOfStock

SKU:ELE-66122b

Experience top-tier performance with the GE Separately Ventilated DC Motor. Ideal for industrial applications, CSA Approved.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GE Separately Ventilated DC Motor with Type C Power Supply is a top-tier solution for industrial applications, offering superior performance and reliability. With continuous rated torque up to 60% base speed, constant brush pressure, and a low inertia armature, this motor ensures efficient operation under varying load conditions. It is capable of handling 150% of the rated load for 60 seconds, making it ideal for demanding operations. Designed for tropical climates, it features a normally closed thermostat F-1 assembly and provisions for mounting a tachometer kit. CSA Approved for quality assurance.

Product Specifications

Applications 0

ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling

Specifications Arm Current

203 amps

Specifications Arm Voltage

500 volts

Specifications Category

Specifications C Dimension

49.7

Specifications Field Current

1.72 amps | 3.7 amps

Specifications Field Voltage

150 volts | 300 volts

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Type

Type C Power Supply

Specifications Multiplier Symbol

GO-2AS

Specifications Nema Frame

506AT

Specifications Normally Stocked

Yes

Specifications Style

Shunt Wound - Dripproof Fully Guarded - Separately Ventilated

Specifications Weight

2290 lbs

GE Separately Ventilated DC Motor with Type C Power Supply
