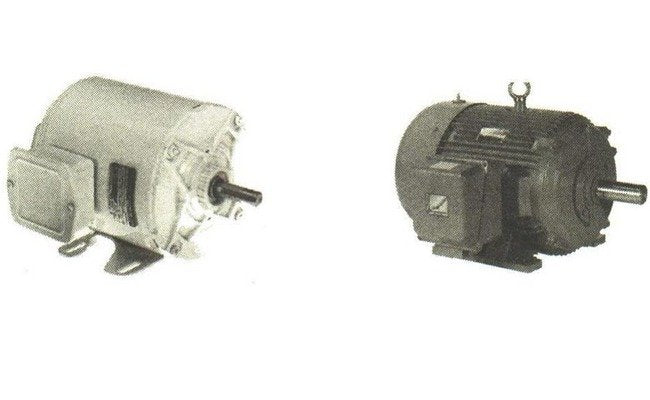

GE Severe Duty Base Mounted Totally Enclosed Fan Cooled Motor
GE Severe Duty Base Mounted Totally Enclosed Fan Cooled Motor
SKU:ELE-0a7496
Efficient GE Motor with high starting torques, complies with MG1-31 standards, ideal for severe duty applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
GE Severe Duty Base Mounted Totally Enclosed Fan Cooled Motor
$1,299.99
Quantity: 1
Claim Your Seller Account
GE Severe Duty Base Mounted Totally Enclosed Fan Cooled Motor
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Severe Duty GE Motor is a powerhouse designed for general purpose applications in non-explosive areas requiring moderate to high starting torques. With a NEMA Frame of 256T and a Voltage of 575 volts, this motor meets EPAct efficiency levels, achieving a Nominal Efficiency of 91% and a Guaranteed Min. Efficiency of 89.5%. Built to comply with MG1-31 at 460 volts, this motor, manufactured by GE Motors and Controls, is a reliable and durable choice for institutions seeking high-performance motors.
Product Specifications
Applications 0
Designed for general purpose applications in the most severe (non-explosive) areas with moderate to high starting torques, where three phase power is available. Moderate to high starting torques
Base Mounted Ultra Tests 0
Routine test report supplied with motor includes vibration test.
Note 0
Data subject to change without notice.
Specifications Category
Prem Efficient
Specifications C Dimension
25.59
Specifications Full Load Ampere Fla Np
19.6 amps
Specifications Guaranteed Min Efficiency
89.5
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted
Specifications Multiplier Symbol
G4-7SSP1
Specifications Nema Frame
256T
Specifications Nominal Efficiency
91
Specifications Normally Stocked
Yes
Specifications Number Of Phase
Three Phase
Specifications Service Factor Sf
1.15
Specifications Style
Totally Enclosed Fan Cooled - Severe Duty
Specifications Voltage
575 volts
Specifications Weight
350 lbs
