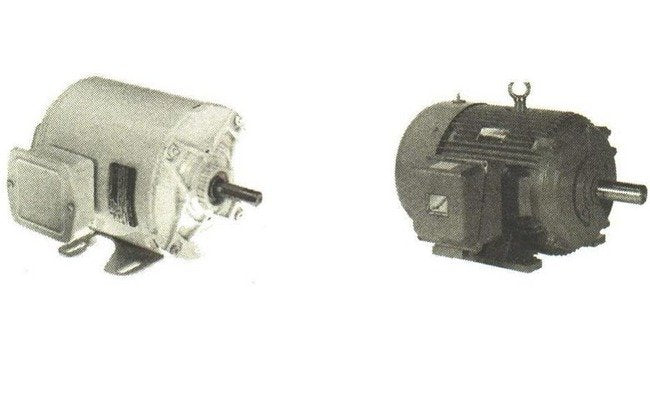

GE Severe Duty Motor 324T - Totally Enclosed Fan Cooled
GE Severe Duty Motor 324T - Totally Enclosed Fan Cooled
SKU:ELE-4ebe86
Efficient Severe Duty GE Motor with high starting torques. NEMA Frame 324T, 460 volts. Built to comply with MG1-31 standards.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
GE Severe Duty Motor 324T - Totally Enclosed Fan Cooled
$2,899.99
Quantity: 1
Claim Your Seller Account
GE Severe Duty Motor 324T - Totally Enclosed Fan Cooled
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Severe Duty GE Motor in frame sizes 182 through 449 is designed to comply with MG1-31 standards at 460 volts, meeting EPAct efficiency levels. Built by GE Motors and Controls, this three-phase motor boasts a NEMA Frame 324T, with a service factor of 1.15, guaranteed minimum efficiency of 93%, and a nominal efficiency of 94.1%. Weighing 700 lbs, this motor is suitable for general purpose applications requiring moderate to high starting torques.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Designed for general purpose applications in the most severe (non-explosive) areas with moderate to high starting torques, where three phase power is available. Moderate to high starting torques
Base Mounted Ultra Tests 0
Routine test report supplied with motor includes vibration test.
Note 0
Data subject to change without notice.
Specifications Category
Prem Efficient
Specifications C Dimension
32.04
Specifications Full Load Ampere Fla Np
51.7 amps
Specifications Guaranteed Min Efficiency
93
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted
Specifications Multiplier Symbol
G4-7SSP
Specifications Nema Frame
324T
Specifications Nominal Efficiency
94.1
Specifications Normally Stocked
Yes
Specifications Number Of Phase
Three Phase
Specifications Service Factor Sf
1.15
Specifications Style
Totally Enclosed Fan Cooled - Severe Duty
Specifications Voltage
460 volts
Specifications Weight
700 lbs
