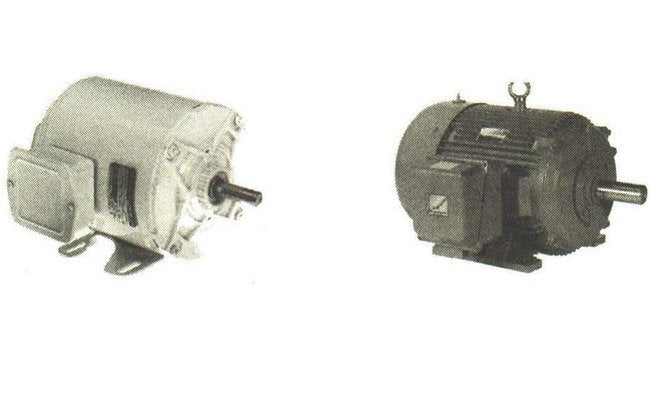

GE Severe Duty Motor, Base Mounted Fan Cooled
GE Severe Duty Motor, Base Mounted Fan Cooled
SKU:ELE-56c805
Efficient and durable Severe Duty GE Motor for heavy-duty applications. Designed for reliability and high performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
GE Severe Duty Motor, Base Mounted Fan Cooled
$1,299.99
Quantity: 1
Claim Your Seller Account
GE Severe Duty Motor, Base Mounted Fan Cooled
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Severe Duty GE Motor, featuring a cast iron frame compliant with MG1-31 at 460 volts, offers EPAct efficiency levels and a robust design for non-protected applications. With a NEMA Frame 256T and a voltage of 575 volts, this three-phase motor provides a service factor of 1.15, ensuring reliable performance in severe environments. Weighing 350 lbs, this motor is suitable for general purpose applications with moderate to high starting torques.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Designed for general purpose applications in the most severe (non-explosive) areas with moderate to high starting torques, where three phase power is available. Moderate to high starting torques
Base Mounted Ultra Tests 0
Routine test report supplied with motor includes vibration test.
Note 0
Data subject to change without notice.
Specifications Category
Prem Efficient
Specifications C Dimension
25.59
Specifications Full Load Ampere Fla Np
19.5 amps
Specifications Guaranteed Min Efficiency
91.7
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted
Specifications Multiplier Symbol
G4-7SSP1
Specifications Nema Frame
256T
Specifications Nominal Efficiency
93
Specifications Normally Stocked
Yes
Specifications Number Of Phase
Three Phase
Specifications Service Factor Sf
1.15
Specifications Style
Totally Enclosed Fan Cooled - Severe Duty
Specifications Voltage
575 volts
Specifications Weight
350 lbs
