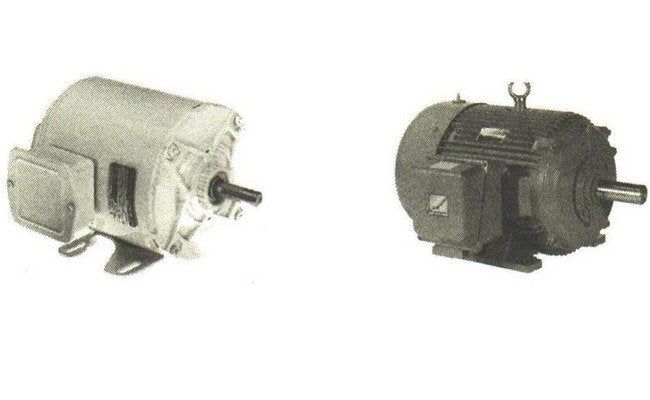

GE Severe Duty Motor - Base Mounted Totally Enclosed Fan Cooled
GE Severe Duty Motor - Base Mounted Totally Enclosed Fan Cooled
SKU:ELE-b2af37
Enhance operations with GE Severe Duty Motor's premium efficiency and robust design. Ideal for severe duty applications.
Regular price
$2,899.00
Regular price
Sale price
$2,899.00
Unit price
per
Initiate Order
GE Severe Duty Motor - Base Mounted Totally Enclosed Fan Cooled
$2,899.00
Quantity: 1
Claim Your Seller Account
GE Severe Duty Motor - Base Mounted Totally Enclosed Fan Cooled
$2,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Severe Duty Motor, part of the GE Premium Efficient General Electric Motors series, is crafted with cast iron frames ranging from 182 to 449 that adhere to MG1-31 regulations at 460 volts. This motor meets EPAct efficiency levels, ensuring optimal performance in general purpose applications with moderate to high starting torques. With a NEMA Frame of 405T, service factor of 1.15, and a nominal efficiency of 94.5%, this motor is designed for the most severe areas where three-phase power is available. Its features include a guaranteed minimum efficiency of 93.6%, weighing 1460 lbs, with a "C" dimension of 39.77. Suitable for moderate to high starting torques in non-explosive areas.
Product Specifications
Applications 0
Designed for general purpose applications in the most severe (non-explosive) areas with moderate to high starting torques, where three phase power is available. Moderate to high starting torques
Base Mounted Ultra Tests 0
Routine test report supplied with motor includes vibration test.
Note 0
Data subject to change without notice.
Specifications Category
Prem Efficient
Specifications C Dimension
39.77
Specifications Full Load Ampere Fla Np
94.6 amps
Specifications Guaranteed Min Efficiency
93.6
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted
Specifications Multiplier Symbol
G4-7SSP
Specifications Nema Frame
405T
Specifications Nominal Efficiency
94.5
Specifications Normally Stocked
Yes
Specifications Number Of Phase
Three Phase
Specifications Service Factor Sf
1.15
Specifications Style
Totally Enclosed Fan Cooled - Severe Duty
Specifications Voltage
460 volts
Specifications Weight
1460 lbs
