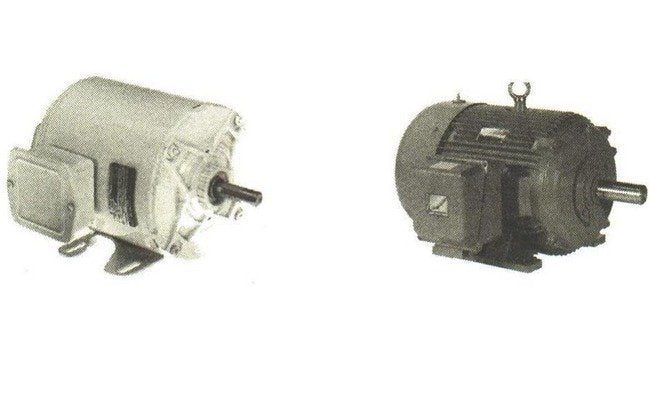

GE Severe Duty Motor - Efficient Three Phase 460V Base Mounted
GE Severe Duty Motor - Efficient Three Phase 460V Base Mounted
SKU:ELE-96a277
Powerful GE Severe Duty Motor with high efficiency and durability for demanding applications.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
GE Severe Duty Motor - Efficient Three Phase 460V Base Mounted
$1,999.99
Quantity: 1
Claim Your Seller Account
GE Severe Duty Motor - Efficient Three Phase 460V Base Mounted
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Severe Duty GE Motor is a powerhouse designed for general purpose applications in the most demanding environments. With a cast iron frame compliant with MG1-31 standards at 460 volts, EPAct efficiency levels, and a service factor of 1.15, this motor ensures optimal performance. It features a Totally Enclosed Fan Cooled design for enhanced durability and safety. Whether you need moderate to high starting torques, this motor delivers with a nominal efficiency of 92.4% and a Guaranteed Min. Efficiency of 91%. Trust in the reliability and quality of GE Motors and Controls.
Product Specifications
Applications 0
Designed for general purpose applications in the most severe (non-explosive) areas with moderate to high starting torques, where three phase power is available. Moderate to high starting torques
Base Mounted Ultra Tests 0
Routine test report supplied with motor includes vibration test.
Note 0
Data subject to change without notice.
Specifications Category
Prem Efficient
Specifications C Dimension
30.54
Specifications Full Load Ampere Fla Np
99.4 / 49.7 amps
Specifications Guaranteed Min Efficiency
91
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted
Specifications Multiplier Symbol
G4-7SSP
Specifications Nema Frame
324TS
Specifications Nominal Efficiency
92.4
Specifications Normally Stocked
Yes
Specifications Number Of Phase
Three Phase
Specifications Service Factor Sf
1.15
Specifications Style
Totally Enclosed Fan Cooled - Severe Duty
Specifications Voltage
230 volts | 460 volts
Specifications Weight
640 lbs
