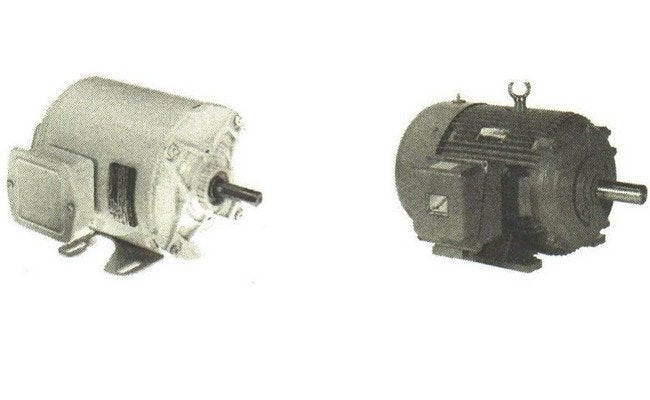

GE Severe Duty Three Phase Motor - Base-Mounted - ULTRA - Totally Enclosed Fan Cooled
GE Severe Duty Three Phase Motor - Base-Mounted - ULTRA - Totally Enclosed Fan Cooled
SKU:ELE-22db55
Industrial-grade GE Severe Duty Three Phase Motor for reliable performance in severe duty operations.
Regular price
$2,500.00
Regular price
Sale price
$2,500.00
Unit price
per
Initiate Order
GE Severe Duty Three Phase Motor - Base-Mounted - ULTRA - Totally Enclosed Fan Cooled
$2,500.00
Quantity: 1
Claim Your Seller Account
GE Severe Duty Three Phase Motor - Base-Mounted - ULTRA - Totally Enclosed Fan Cooled
$2,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Severe Duty Three Phase Motor is a powerhouse designed for industrial applications requiring reliable performance. Featuring a base-mounted ULTRA design, totally enclosed fan cooled for enhanced safety, and suitable for severe duty operations. With a three-phase configuration, 575 volts voltage rating, and NEMA Frame 284T, this motor delivers efficiency with a service factor of 1.15. Built with Class H insulation system, this motor ensures durability and long-lasting performance, backed by a warranty of up to 42 months. The GE Severe Duty Motor is a top choice for institutions seeking premium efficiency and robust construction.
Product Specifications
Endshield Machine 0
Drive end machined to accept field installed Inpro seal.Finned design allows for improved heat dissapation reducing stator and bearing temperatures.
L10 Bearing Life 0
Direct coupled L10 - 130000Belted L10a - 50000Belted with no life factors L10 - 26280
Mounting Holes 0
Dual mounting holes allow frame families to mount in same location example 182 and 184; 404 and 405. Helps reduce inventory.
Nameplate 0
316 Stainless steel with NEMA defined information plus weight, 3/4 load efficiency, vibration limit, alternate ambient rating.
Note 0
Data subject to change without notice.
Shaft Tir 0
Meets IEEE 841 specification. 1 mil for shaft diameter 1 .625 inch and smaller 1 .5 mil for shaft diameter greater than 1 .625 inch.
Specifications Ambient Temperature
40 °C
Specifications Balance
ISO Grade 1:0.04 ips overall balance
Specifications Bearing Caps
Machined cast iron gasketed, both ends 140 - 449 frames.
Specifications Bearing Housing Rise Temperature
65 °C
Specifications Category
Prem Efficient
Specifications Centered Core
Allows F1-F2 conversion 143 - 449T
Specifications Conduit Box
Cast iron rotatable 90 degree increments, gasketed cover.Threaded conduit opening, gasket between box and frame.
Specifications C Dimension
28.58
Specifications Division Ii
Standard UL Div II
Specifications Drains
Brass T-drain
Specifications Foot Draft Angle
± 1.5 °
Specifications Foot Flatness
0.005 °
Specifications Full Load Ampere Fla Np
15.7 amps
Specifications Grease Type
Exxon Polyrex EM
Specifications Ground
New Box type ground
Specifications Guaranteed Min Efficiency
91
Specifications Hardware
Grade 5
Specifications Insulation System
Class H materials with class F leads
Specifications Insulation Withstand
2000 volt
Specifications Ip54 Shaft Slinger
Neoprene slinger drive end
Specifications Lifting Lugs
(4) cast in lifting lugs 140 - 449 frame
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted - ULTRA
Specifications Multiplier Symbol
G4-7U1
Specifications Nema Frame
284T
Specifications Nominal Efficiency
91.7
Specifications Normally Stocked
Yes
Specifications No Of Pole
2 | 4 | 6 | 8
Specifications Number Of Phase
Three Phase
Specifications Relubrication
Grease inlet fitting, outlet plug on both ends
Specifications Service Factor Sf
1.15
Specifications Standard Bearing Drive End
6310
Specifications Voltage
575 volts
