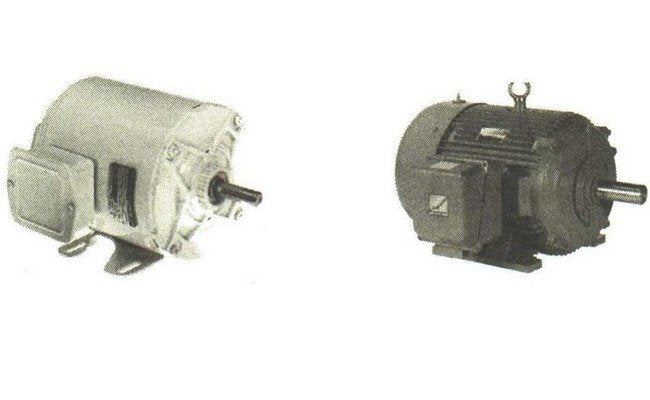

GE Severe Duty Three Phase Motor - ULTRA Totally Enclosed, Base Mounted
GE Severe Duty Three Phase Motor - ULTRA Totally Enclosed, Base Mounted
SKU:ELE-b76ccb
Rugged and efficient GE Severe Duty Three Phase Motor for demanding industrial applications. ULTRA Totally Enclosed Fan Cooled design for durability.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
GE Severe Duty Three Phase Motor - ULTRA Totally Enclosed, Base Mounted
$1,299.99
Quantity: 1
Claim Your Seller Account
GE Severe Duty Three Phase Motor - ULTRA Totally Enclosed, Base Mounted
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Severe Duty Three Phase Motor is a reliable powerhouse designed for demanding industrial applications. Featuring a rugged cast iron construction, it is ULTRA Totally Enclosed Fan Cooled for enhanced durability. This motor operates on Three Phases, with voltage options of 230 volts and 460 volts. With a high NEMA Frame size of 256T and a service factor of 1.15, it offers exceptional efficiency at 93%, exceeding industry standards. Built with Class H insulation system and Class F leads, this motor ensures reliable performance even in challenging environments. Meets IEEE 841 specifications and comes with a comprehensive warranty for peace of mind.
Product Specifications
Endshield Machine 0
Drive end machined to accept field installed Inpro seal.Finned design allows for improved heat dissapation reducing stator and bearing temperatures.
L10 Bearing Life 0
Direct coupled L10 - 130000Belted L10a - 50000Belted with no life factors L10 - 26280
Mounting Holes 0
Dual mounting holes allow frame families to mount in same location example 182 and 184; 404 and 405. Helps reduce inventory.
Nameplate 0
316 Stainless steel with NEMA defined information plus weight, 3/4 load efficiency, vibration limit, alternate ambient rating.
Note 0
Data subject to change without notice.
Shaft Tir 0
Meets IEEE 841 specification. 1 mil for shaft diameter 1 .625 inch and smaller 1 .5 mil for shaft diameter greater than 1 .625 inch.
Specifications Ambient Temperature
40 °C
Specifications Balance
ISO Grade 1:0.04 ips overall balance
Specifications Bearing Caps
Machined cast iron gasketed, both ends 140 - 449 frames.
Specifications Bearing Housing Rise Temperature
65 °C
Specifications Category
Prem Efficient
Specifications Centered Core
Allows F1-F2 conversion 143 - 449T
Specifications Conduit Box
Cast iron rotatable 90 degree increments, gasketed cover.Threaded conduit opening, gasket between box and frame.
Specifications C Dimension
25.59
Specifications Division Ii
Standard UL Div II
Specifications Drains
Brass T-drain
Specifications Foot Draft Angle
± 1.5 °
Specifications Foot Flatness
0.005 °
Specifications Full Load Ampere Fla Np
46.8 / 23.4 amps
Specifications Grease Type
Exxon Polyrex EM
Specifications Ground
New Box type ground
Specifications Guaranteed Min Efficiency
92.4
Specifications Hardware
Grade 5
Specifications Insulation System
Class H materials with class F leads
Specifications Insulation Withstand
2000 volt
Specifications Ip54 Shaft Slinger
Neoprene slinger drive end
Specifications Lifting Lugs
(4) cast in lifting lugs 140 - 449 frame
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted - ULTRA
Specifications Multiplier Symbol
G4-7U1
Specifications Nema Frame
256T
Specifications Nominal Efficiency
93
Specifications Normally Stocked
Yes
Specifications No Of Pole
2 | 4 | 6 | 8
Specifications Number Of Phase
Three Phase
Specifications Relubrication
Grease inlet fitting, outlet plug on both ends
Specifications Service Factor Sf
1.15
Specifications Standard Bearing Drive End
6309
Specifications Voltage
230 volts | 460 volts
