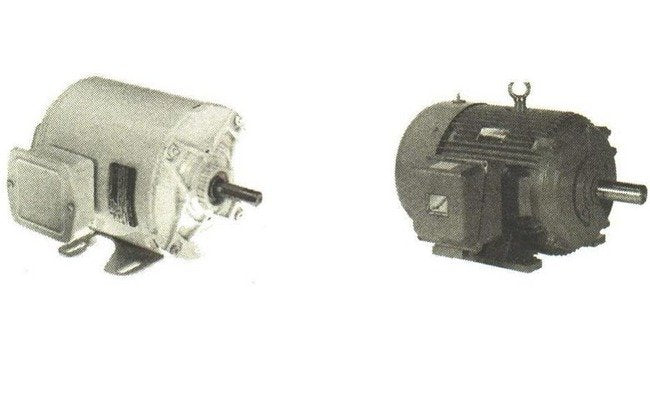

GE Three Phase Severe Duty ULTRA Motor
GE Three Phase Severe Duty ULTRA Motor
SKU:ELE-d4a91b
Get unmatched efficiency and reliability with the GE Three Phase Severe Duty ULTRA Motor. Ideal for heavy-duty industrial applications.
Regular price
$2,450.00
Regular price
Sale price
$2,450.00
Unit price
per
Initiate Order
GE Three Phase Severe Duty ULTRA Motor
$2,450.00
Quantity: 1
Claim Your Seller Account
GE Three Phase Severe Duty ULTRA Motor
$2,450.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Three Phase Severe Duty GE Motor is a powerhouse in efficiency and reliability. Manufactured by GE Motors and Controls, this motor is designed for heavy-duty applications, featuring a totally enclosed fan-cooled system for optimal performance. With a voltage rating of 230/460 volts and a NEMA Frame of 326T, it offers a Guaranteed Min. Efficiency of 94.1%. The motor is built with Class H materials and class F leads for superior insulation withstand. Backed by a warranty of up to 42 months, this GE Motor ensures durability and longevity in demanding industrial settings.
Product Specifications
Endshield Machine 0
Drive end machined to accept field installed Inpro seal.Finned design allows for improved heat dissapation reducing stator and bearing temperatures.
L10 Bearing Life 0
Direct coupled L10 - 130000Belted L10a - 50000Belted with no life factors L10 - 26280
Mounting Holes 0
Dual mounting holes allow frame families to mount in same location example 182 and 184; 404 and 405. Helps reduce inventory.
Nameplate 0
316 Stainless steel with NEMA defined information plus weight, 3/4 load efficiency, vibration limit, alternate ambient rating.
Note 0
Data subject to change without notice.
Shaft Tir 0
Meets IEEE 841 specification. 1 mil for shaft diameter 1 .625 inch and smaller 1 .5 mil for shaft diameter greater than 1 .625 inch.
Specifications Ambient Temperature
40 °C
Specifications Balance
ISO Grade 1:0.04 ips overall balance
Specifications Bearing Caps
Machined cast iron gasketed, both ends 140 - 449 frames.
Specifications Bearing Housing Rise Temperature
65 °C
Specifications Category
Prem Efficient
Specifications Centered Core
Allows F1-F2 conversion 143 - 449T
Specifications Conduit Box
Cast iron rotatable 90 degree increments, gasketed cover.Threaded conduit opening, gasket between box and frame.
Specifications C Dimension
32.04
Specifications Division Ii
Standard UL Div II
Specifications Drains
Brass T-drain
Specifications Foot Draft Angle
± 1.5 °
Specifications Foot Flatness
0.005 °
Specifications Full Load Ampere Fla Np
124.6 / 62.3 amps
Specifications Grease Type
Exxon Polyrex EM
Specifications Ground
New Box type ground
Specifications Guaranteed Min Efficiency
94.1
Specifications Hardware
Grade 5
Specifications Insulation System
Class H materials with class F leads
Specifications Insulation Withstand
2000 volt
Specifications Ip54 Shaft Slinger
Neoprene slinger drive end
Specifications Lifting Lugs
(4) cast in lifting lugs 140 - 449 frame
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Code
E$
Specifications Motor Type
Base Mounted - ULTRA
Specifications Multiplier Symbol
G4-7U
Specifications Nema Frame
326T
Specifications Nominal Efficiency
94.5
Specifications Normally Stocked
Yes
Specifications No Of Pole
2 | 4 | 6 | 8
Specifications Number Of Phase
Three Phase
Specifications Relubrication
Grease inlet fitting, outlet plug on both ends
Specifications Service Factor Sf
1.15
Specifications Standard Bearing Drive End
6312
Specifications Voltage
230/460 volts
