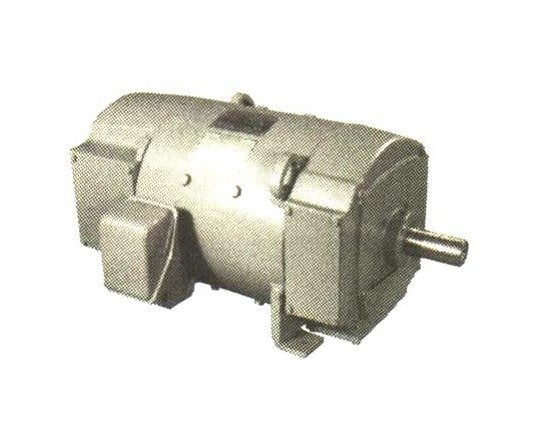

GE Totally Enclosed DC Motor, Type C Power Supply

Name: GE Totally Enclosed DC Motor, Type C Power Supply
Brand: Gainesville Industrial Electric Co.
SKU: ELE-f062bd
Price: 2899.99 USD
Availability: OutOfStock

SKU:ELE-f062bd

Reliable and durable GE Totally Enclosed DC Motor for industrial applications. TENV continuous rated torque, TEFC continuous rated torque, & more.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The General Electric Totally Enclosed DC Motor, part of the GE Motors lineup, features a shunt wound design with a Type C Power Supply motor type. It offers TENV continuous rated torque up to 5% base speed and TEFC continuous rated torque up to 60% base speed, ensuring reliable performance in demanding applications. With low inertia armature and constant brush pressure, it can handle 150% of rated load for 60 seconds. This motor is suitable for tropical climates, equipped with one normally-closed thermostat and F-1 assembly, making it a versatile choice for conveyors, textile machines, printing presses, and more.

Product Specifications

Applications 0

ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling

Specifications Arm Current

24.5 amps

Specifications Arm Voltage

500 volts

Specifications Category

Specifications C Dimension

36.4

Specifications Field Current

.68 amps | .98 amps

Specifications Field Voltage

150 volts | 300 volts

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Type

Type C Power Supply Motor

Specifications Multiplier Symbol

GO-2AS

Specifications Nema Frame

288AT

Specifications Normally Stocked

Yes

Specifications Style

Shunt Wound - Totally Enclosed

Specifications Weight

587 lbs

GE Totally Enclosed DC Motor, Type C Power Supply
