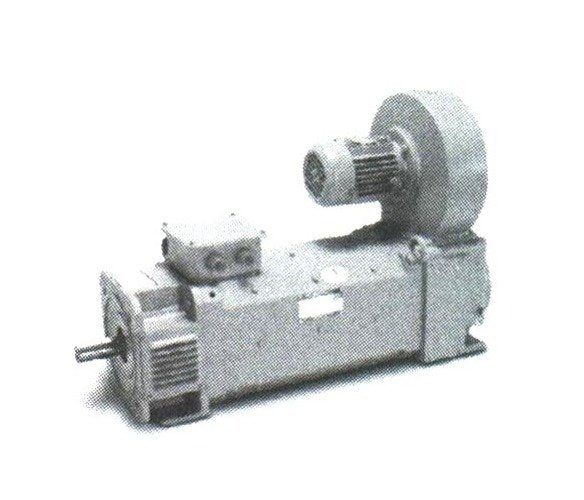

GE Type C Blower Ventilated DC Motor 500V CD2113ATZ
GE Type C Blower Ventilated DC Motor 500V CD2113ATZ
SKU:ELE-013bcc
Powerful GE Type C Blower Ventilated DC Motor for continuous torque and versatile applications.
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
per
Initiate Order
GE Type C Blower Ventilated DC Motor 500V CD2113ATZ
$2,750.00
Quantity: 1
Claim Your Seller Account
GE Type C Blower Ventilated DC Motor 500V CD2113ATZ
$2,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GE Type C Blower Ventilated DC Motor delivers continuous rated torque at 5% base speed, capable of handling 150% of the rated load for 60 seconds. With 3 phase, 60 Hz operation and a top-mounted conduit box, this motor features shunt wound Class F insulation and provisions for mounting a tachometer kit. Ideal for a range of applications including conveyors, textile machines, and pumps.
Product Specifications
Applications 0
ConveyorsTextile MachinesPrinting PressesPackaging MachinesExtrudersPumpsFansCompressorsCranesMaterial Handling
Specifications Arm Current
35.5 amps
Specifications Arm Voltage
500 volts
Specifications Category
DC
Specifications C Dimension
29.9
Specifications Field Current
.96 amps | 1.9 amps
Specifications Field Voltage
150 volts | 300 volts
Specifications Manufacturer
GE Motors and Controls
Specifications Motor Type
Type C Power Supply Motor
Specifications Multiplier Symbol
GO-2AS
Specifications Nema Frame
CD2113ATZ
Specifications Normally Stocked
Yes
Specifications Style
Dripproof Fully Guarded - Blower Ventilated
Specifications Weight
361 lbs
