GE XPleat GF Glass Microfiber Filters
GE XPleat GF Glass Microfiber Filters
SKU:PLE-b4479f
Enhance filtration efficiency with GE XPleat GF Glass Microfiber Filters. Nominal 0.45 µm, absolute 2 µm ratings for high-flow applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
GE XPleat GF Glass Microfiber Filters
$45.99
Quantity: 1
Claim Your Seller Account
GE XPleat GF Glass Microfiber Filters
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior filtration efficiency with GE XPleat GF Glass Microfiber Filters. With a nominal micron rating of 0.45 µm and an absolute rating of 2 µm, these filters excel in applications requiring high flow rates. Built with durable materials and precise construction, these cartridges are designed to meet the stringent demands of industrial and institutional filtration needs. Ensure reliable water services and exceptional process fluid filtration with GE's trusted technology.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
GE Water & Process Technologies filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Dimensions Effective Filtration Area
9 ft² | 1 m²
Dimensions Inside Diameter
1.25 in | 31 mm
Dimensions Outside Diameter
2.75 in | 70 mm
General Properties 0
XPleat GF filters are available in nominal and absolute micron ratings (Figure 1). The nominal micron ratings are: 0.2, 0.45, 1.0, 3.0 and 10.0 µm. The absolute micron ratings are 1.0, 2.0, 4.0, 8.0 and 15.0 µm. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance.

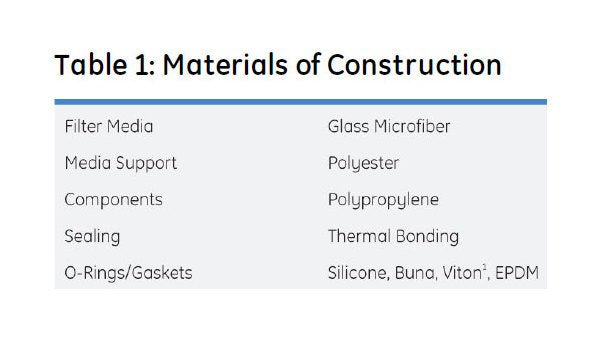

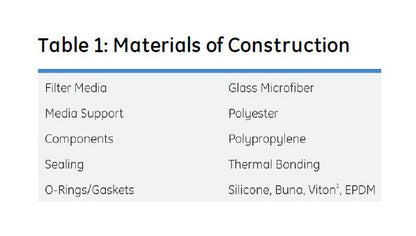

Materials Of Construction Components
Polypropylene
Materials Of Construction Elastomer Material
Buna-N | EPDM | Silicone | Viton
Materials Of Construction Filter Media Material
Glass Microfiber
Materials Of Construction Media Support Material
Polyester
Materials Of Construction O Ringsgaskets
Buna | EPDM | Silicone | Viton
Materials Of Construction Sealing
Thermal Bonding
Operational Limits Maximum Forward Differential Pressure
60 psid | 4.14 bar
Operational Limits Maximum Operating Temperature At 10 Psi 069 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure
30 psid | 2.07 bar
Specifications Absolute Micron Rating
2 µm
Specifications End 1 Adapter
222 O-Ring
Specifications End 2 Adapter
213 O-Ring
Specifications Length
20 in | 50.8 cm
Specifications Membranemedia
GF
Specifications Nominal Micron Rating
0.45 µm
Specifications Note
XPleat is available in case quantities only.XPleat part numbers reflect case quantities of six (6).Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
XPLT
Applications 0
For general water servicesFor fine process fluid filtrationFor processes that require excellent flow rates
