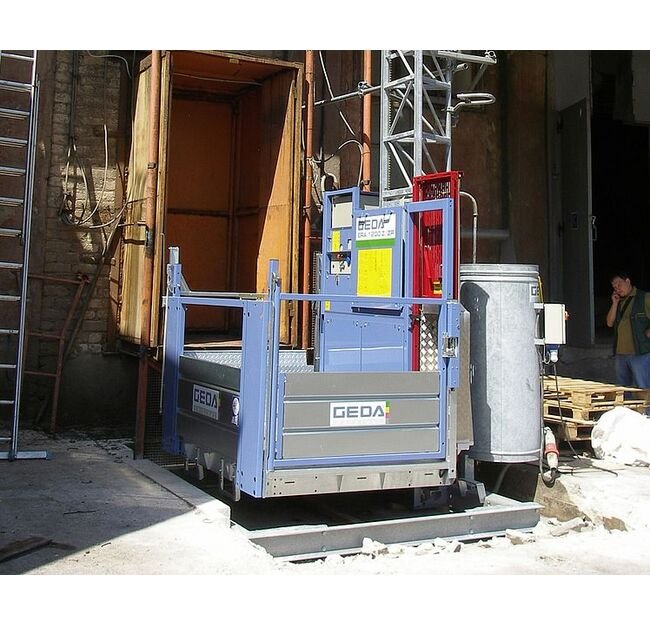

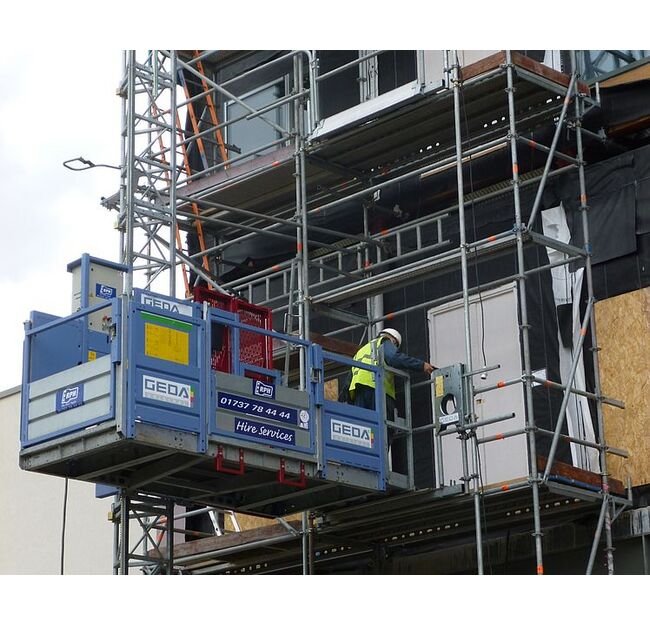

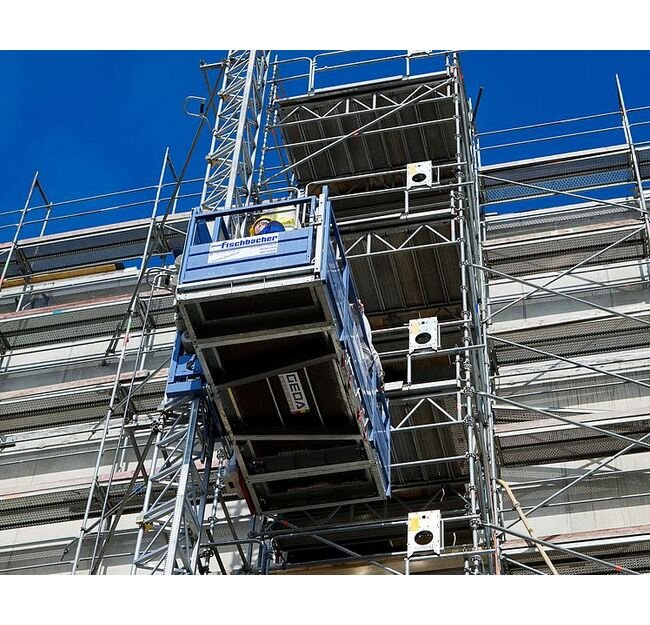

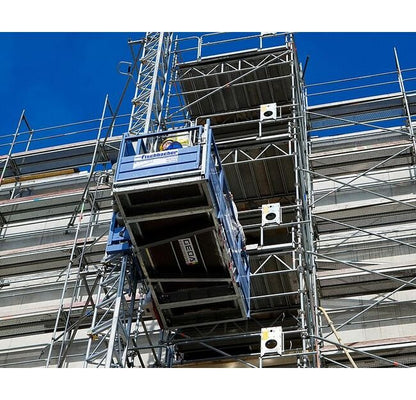

The single mast transport platform GEDA 1200 Z/ZP represents an alternative to the well-known GEDA uni-mast system platforms.Its maximum load bearing capacity of 1500 kg or up to 7 people makes this single mast platform the ideal hoist for transporting people and materials.The load bearing capacity depends on the platform variant that is used.
Product Specifications
Additional Information
You can choose between 3 different platforms variants:Platform "A" 1.4 x 2.0 x 1.1/1.8 m, load bearing capacity 1500 kgPlatform "B" 1.4 x 2.6 x 1.1/1.8 m, load bearing capacity 1200 kgPlatform "C" 1.4 x 3.2 x 1.1/1.8 m, load bearing capacity 1000 kgPlatform "C 1500 kg" 1.4 x 3.2 x 1.1/1.8 m, load bearing capacity 1500 kgYou can also have equipped your transport platform with a roof.
Power Supply Current
32 A
Power Supply Frequency
50 Hz
Power Supply Power
2 x 3 kW | 6.1 kW
Power Supply Voltage
400 V
Specifications Cargo
Material | Persons
Specifications Lifting Height
150 m
Specifications Lifting Speed
12 m/min | 24 m/min
Specifications Load Capacity
7 Persons
Specifications Mast System
GEDA VARIO-MAST
Specifications Material Load Capacity
1,500 kg
Specifications Place Of Origin
Germany
