GEDA 200 Z Material Hoists

Name: GEDA 200 Z Material Hoists
Brand: GEDA USA, LLC
SKU: GED-31b3b3
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-31b3b3

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

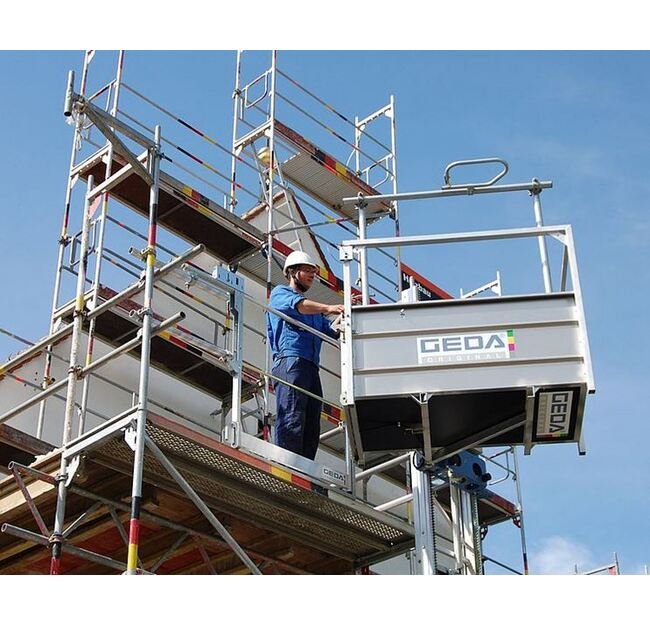

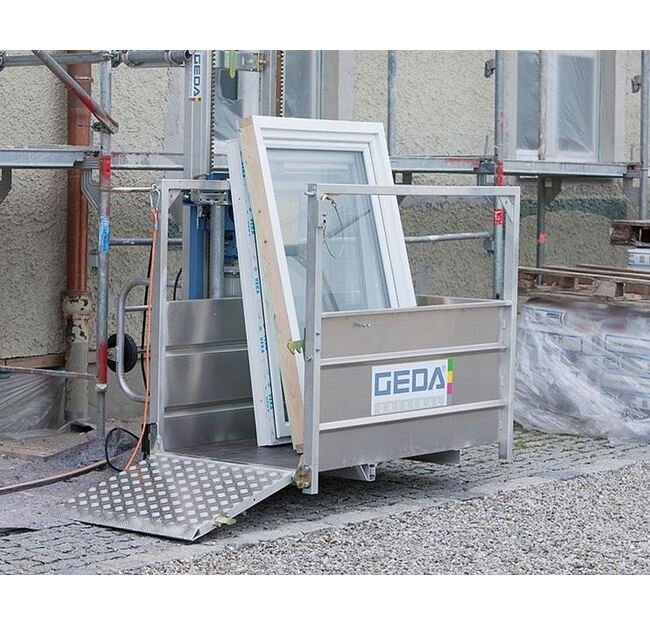

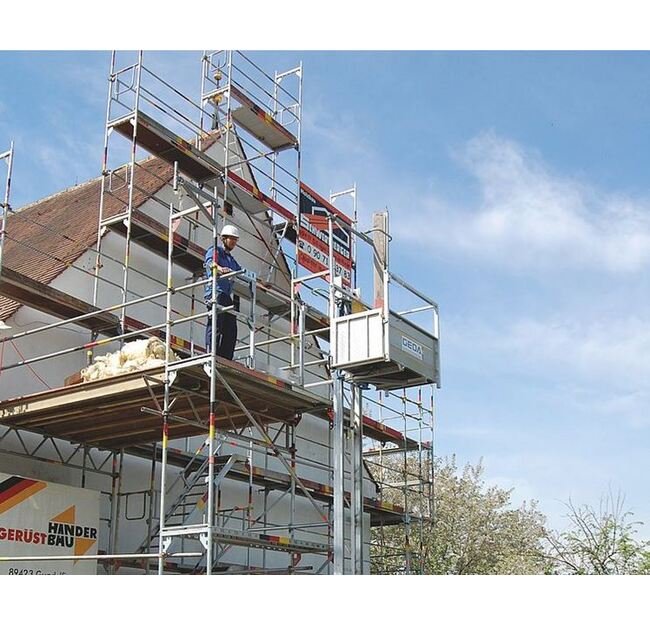

The small, lightweight and handy GEDA 200 Z - our ideal hoist for scaffolders and construction workers.The base unit includes chassis, cable bin and trailing cable.The mast with the toothed rack can be fixed to the scaffold using only one tube. The anchoring distances are 4 m. The entire unit only requires an area of 1.5 x 1.5 m on the ground, which makes it possible to load the hoist parallel to the building without any problems. Unloading at the landing levels can be easily done by turning the platform.

Product Specifications

Additional Information

The lightweight platform (only 44 kg) can be turned by 90º to the left and to the right.The GEDA design and development team has constructed the GEDA 200 Z to be easily serviced and maintained, i.e. easy access to handy components.

Platform Dimension Platform Height

1.1 m

Platform Dimension Platform Length

1.4 m

Platform Dimension Platform Width

0.8 m

Power Supply Current

16 A

Power Supply Frequency

50 Hz

Power Supply Power

1.7 kW

Power Supply Voltage

230 V

Specifications Cargo

Material

Specifications Lifting Height

35 m

Specifications Lifting Speed

25 m/min

Specifications Mast System

ALU-Ladder (with Rack)

Specifications Material Load Capacity

200 kg

Specifications Place Of Origin

Germany

GEDA 200 Z Material Hoists
