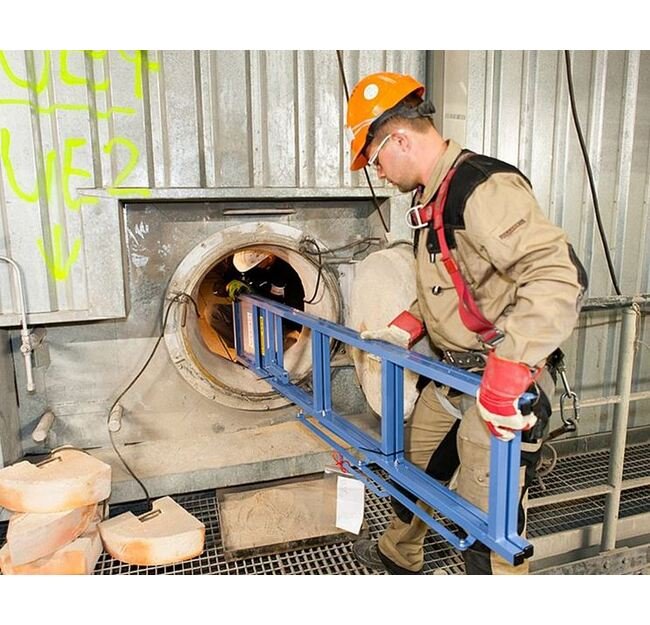

When repairing and maintaining silos, blast furnaces, co-generation plants and boilers etc, every minute and centimeter of space counts, since access is only possible through the small manhole only 45 cm in diameter.So this is precisely where the materials hoist, the GEDA 300 Z Boiler Hoist, should be deployed.The platform of the pure materials hoist can be accessed for loading/unloading and personnel may also travel in the hoist for assembling/dismantling the device.
Product Specifications
Additional Information
The GEDA 300 Z Boiler Hoist can be completely dismantled into its individual parts and is also popular with customers since it can be assembled and dismantled quickly by two people in only about 40 minutes. In this regard its rack and pinion design has proven its worth as the GEDA 300 Z Boiler Hoist can be assembled significantly more quickly than wire rope hoists. All connection cords are fitted with plug and socket devices to ensure that assembly is easy and fast.
Power Supply Current
16 A
Power Supply Frequency
50 Hz
Power Supply Power
2.2 kW
Power Supply Voltage
400 V
Specifications Cargo
Material
Specifications Lifting Height
100 m
Specifications Lifting Speed
25 m/min
Specifications Mast System
GEDA ALU-MAST
Specifications Material Load Capacity
300 kg
Specifications Place Of Origin
Germany
