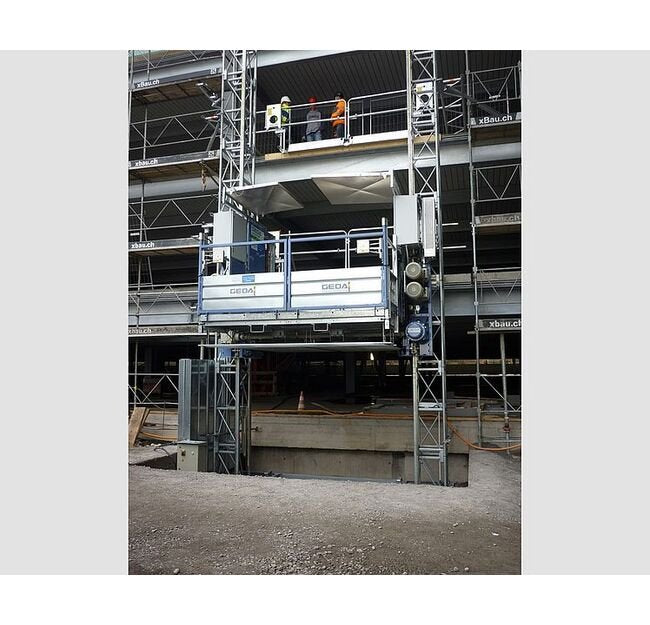

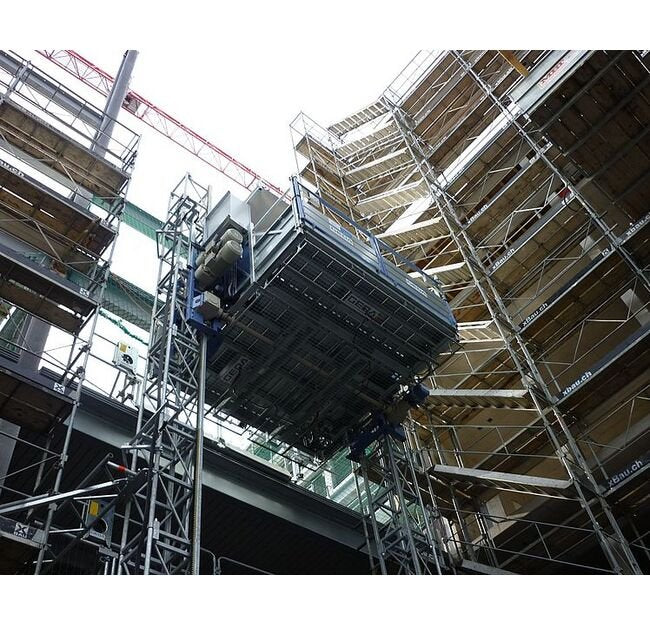

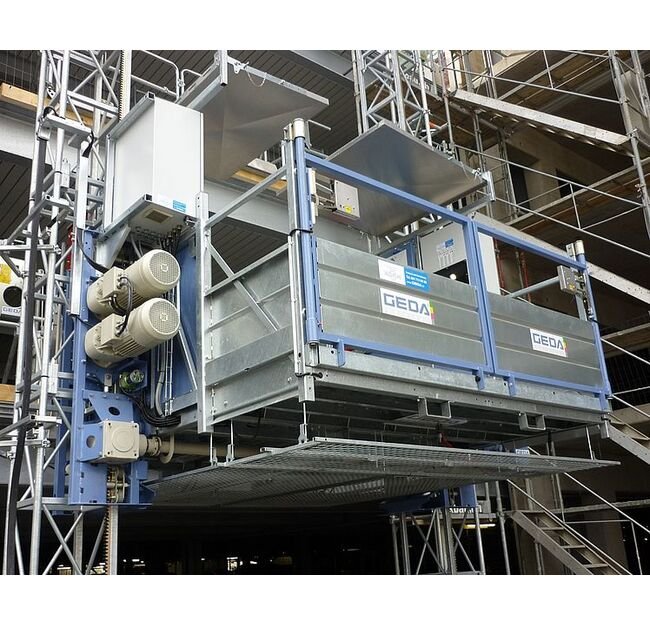

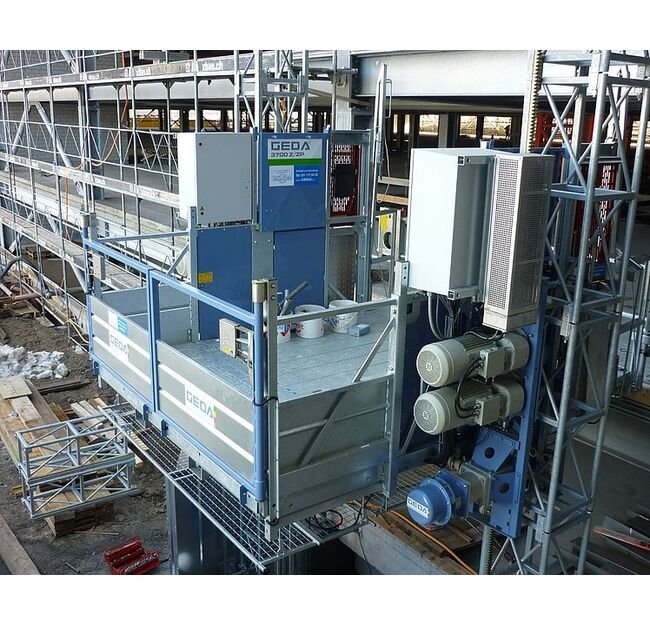

GEDA 3700 Z/ZP Transport Platform Hoists for Personnel and Materials

Name: GEDA 3700 Z/ZP Transport Platform Hoists for Personnel and Materials
Brand: GEDA USA, LLC
SKU: GED-5d616d
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-5d616d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The tried-and-tested GEDA know-how has been incorporated into the development of the new device which completes the transport platform range.With the launch of the new GEDA 3700 Z/ZP the company offers a device that meets the market demands for higher loads and larger platform sizes: Four different platform dimensions with a maximum load capacity of 3700 kg make the transport platform versatile and adaptable to any challenge on site.

Product Specifications

Main Standout Features

Large platform 5.00 x 2.90 mSmooth start for precise landing stop.Load indication in kg and monitoring of the load distribution.Fully compatible with the GEDA system.Four different platform dimensions available.Load capacity: 3700 kg (depends on platform dimension)

Platform Dimension Platform Length

5 m

Platform Dimension Platform Width

2.9 m

Power Supply Current

63 A

Power Supply Frequency

50 Hz

Power Supply Power

28 kW

Power Supply Voltage

400 V

Specifications Cargo

Material | Persons

Specifications Lifting Height

100 m

Specifications Lifting Speed

12 m/min | 24 m/min

Specifications Load Capacity

7 Persons

Specifications Mast System

GEDA VARIO-MAST

Specifications Material Load Capacity

3,700 kg

Specifications Place Of Origin

Germany
