GEDA 500 Z Duo Material Hoists

Name: GEDA 500 Z Duo Material Hoists
Brand: GEDA USA, LLC
SKU: GED-f33ba1
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-f33ba1

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

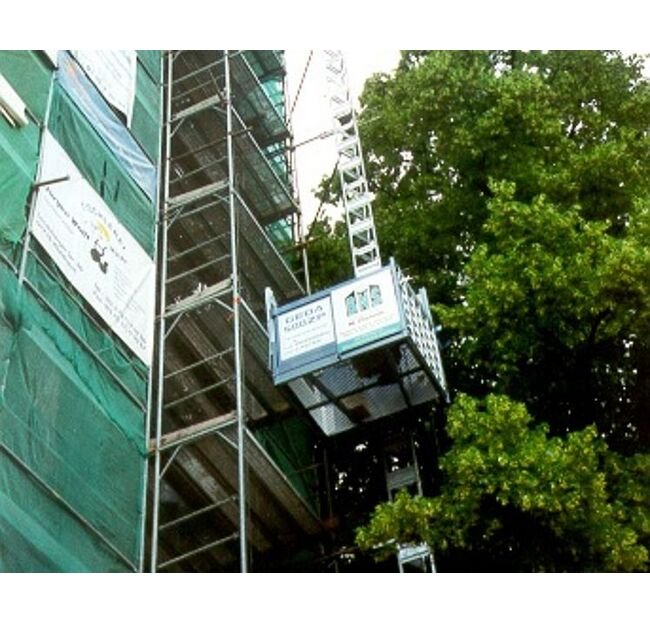

These rack and pinion hoists with steel segment masts have earned their good reputation over the years being a reliable partner for construction workers. Their spacious load platforms offer enough space for two wheelbarrows or large pallets as well as fixing devices for bulky construction materials. The steel mast system allows for easy assembly from the platform up to a height of 100 m.

Product Specifications

Additional Information

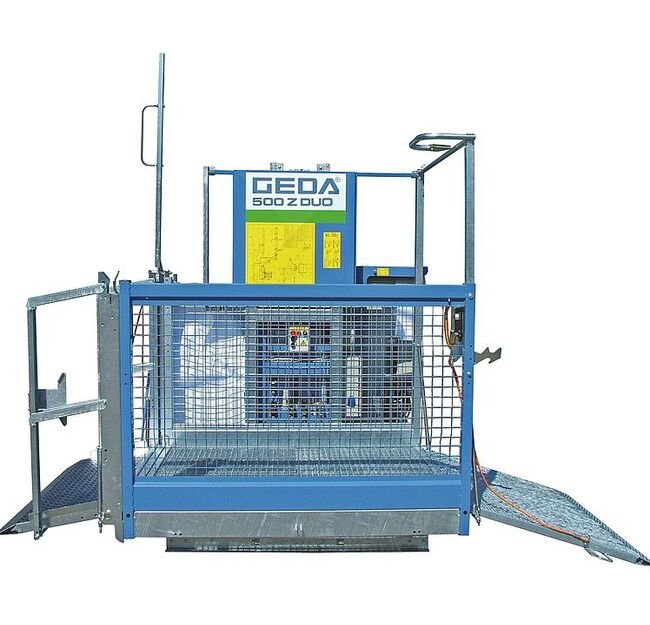

Safe unloading of the transported materials is granted by the platform's being able to be turned by 90º. Loading at the base unit is carried out parallel to the building. This can be very space saving and a decisive feature on narrow construction sites!A patented mono-axis trailer for transporting and automatically putting down/loading the hoist is offered as accessory.The GEDA 500 Z Duo is available with load-through and rotable platform.

Platform Dimension Platform Height

1.1 m | 1.8 m

Platform Dimension Platform Length

1.6 m

Platform Dimension Platform Width

1.4 m

Power Supply Current

16 A

Power Supply Frequency

50 Hz

Power Supply Power

5.5 kW

Power Supply Voltage

400 V

Specifications Cargo

Material

Specifications Lifting Height

100 m

Specifications Lifting Speed

30 m/min

Specifications Mast System

GEDA UNI-MAST

Specifications Material Load Capacity

500 kg

Specifications Place Of Origin

Germany

GEDA 500 Z Duo Material Hoists
