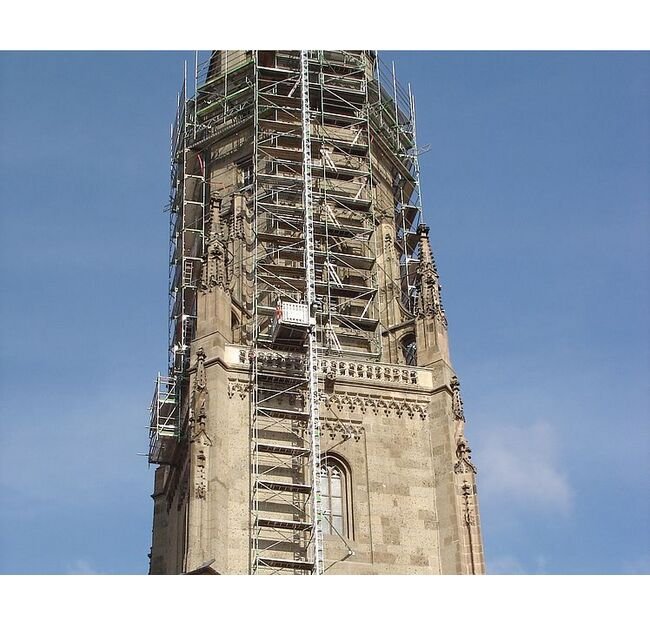

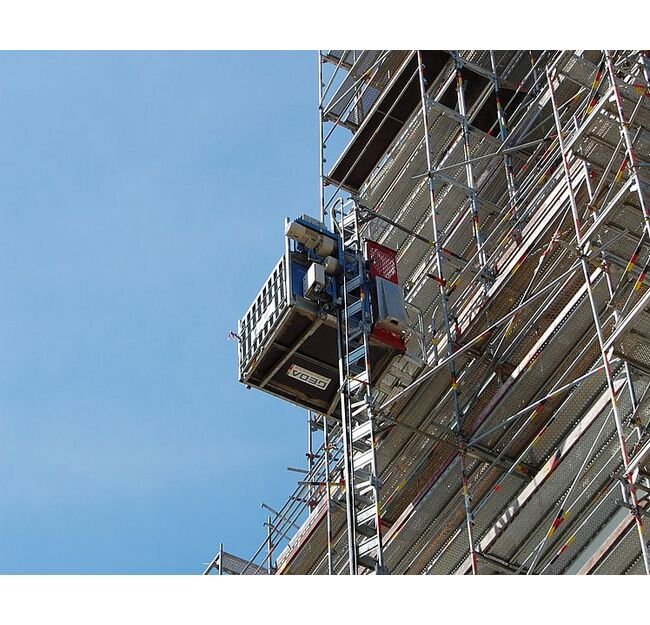

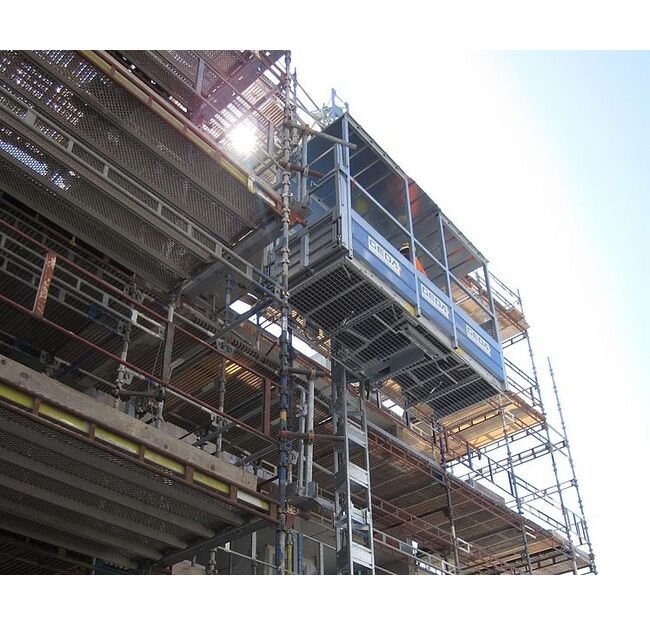

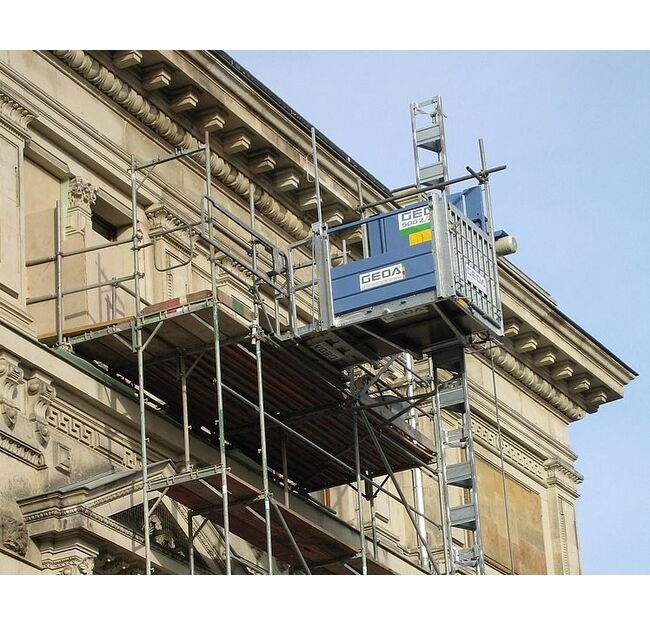

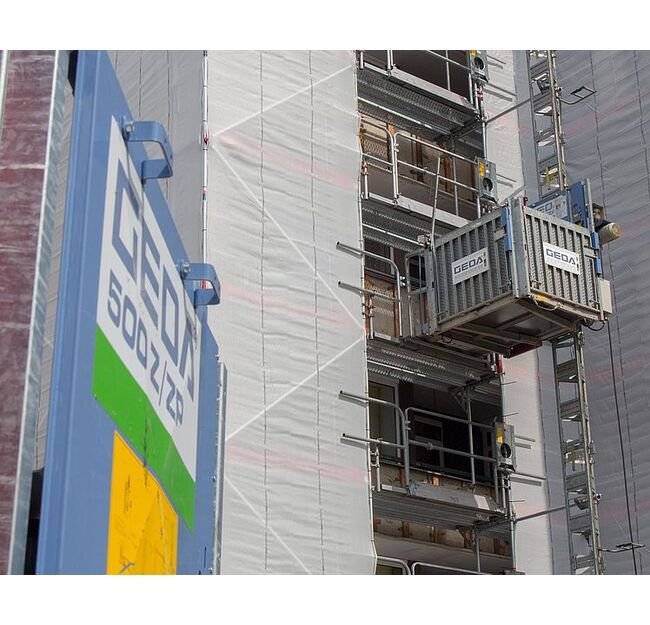

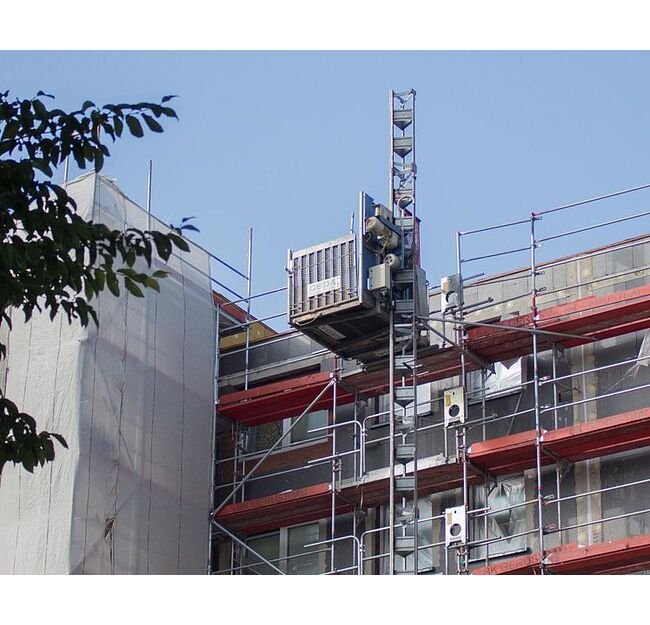

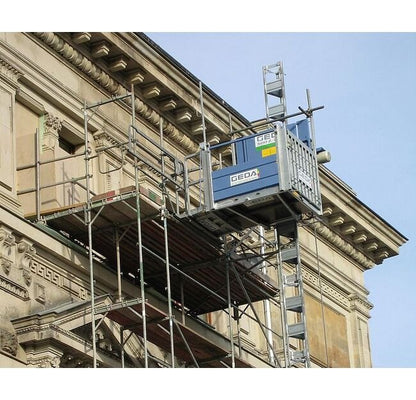

Two units in one: a building hoist with a load bearing capacity up to 850 kg or a transport platform for a maximum of 5 people and loads up to 500 kg.The transport platform GEDA 500 Z/ZP offers a simple and good-value transport system for materials and people with a spacious transport platform, which is not closed on the top.The well-know GEDA steel mast segments stand for easy assembly directly from the transport platform up to a height of 100 m. Without using a crane, you can put on the handy 1.5 m mast segments and secure them with captive screws and locking nuts.
Product Specifications
Additional Information

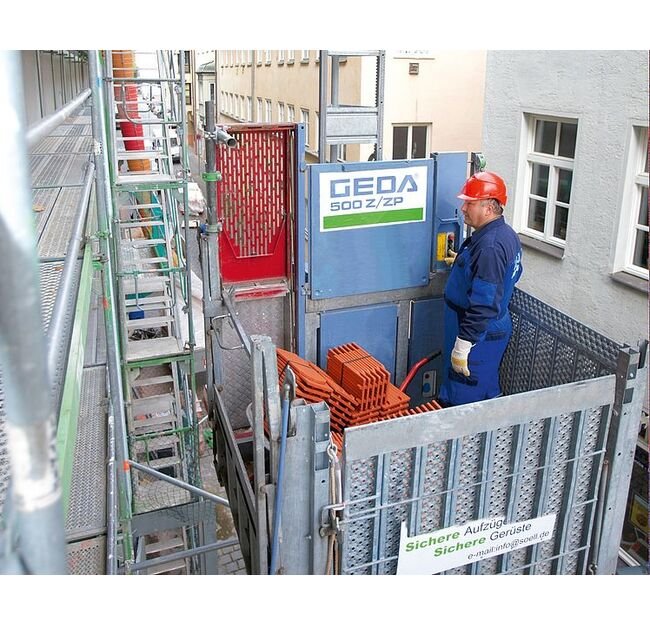

In order to prevent people from falling down, hot-dip galvanized landing level safety gates with mechanically locked sliding doors are installed to all loading and unloading points.
Power Supply Current
16 A
Power Supply Frequency
50 Hz
Power Supply Power
3 kW | 6.1 kW
Power Supply Voltage
400 V
Specifications Cargo
Material | Persons
Specifications Lifting Height
100 m
Specifications Lifting Speed
12 m/min | 24 m/min
Specifications Load Capacity
5 Persons/500 kg
Specifications Mast System
GEDA UNI-MAST
Specifications Material Load Capacity
850 kg
Specifications Place Of Origin
Germany
