GEDA 500 ZP P Transport Platform Hoists for Personnel and Materials

Name: GEDA 500 ZP P Transport Platform Hoists for Personnel and Materials
Brand: GEDA USA, LLC
SKU: GED-6d70cb
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-6d70cb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

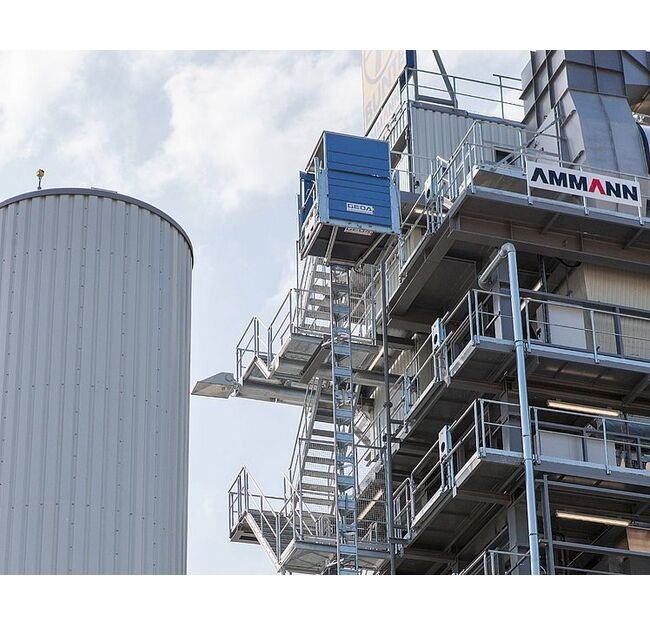

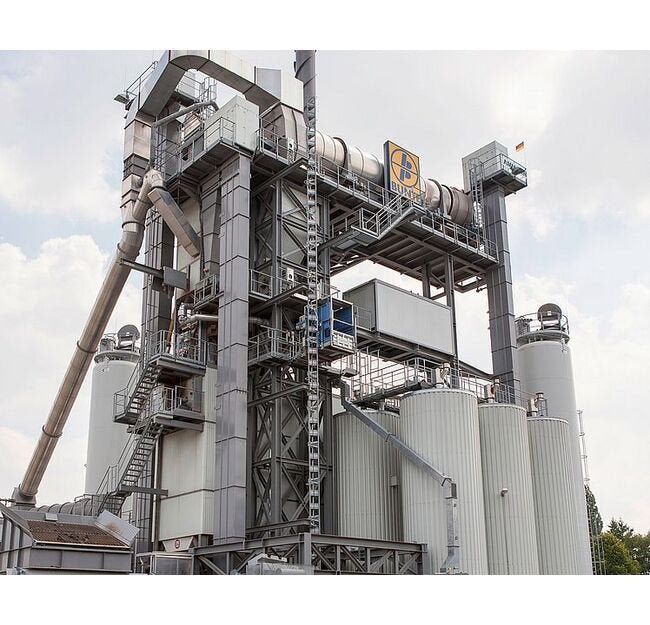

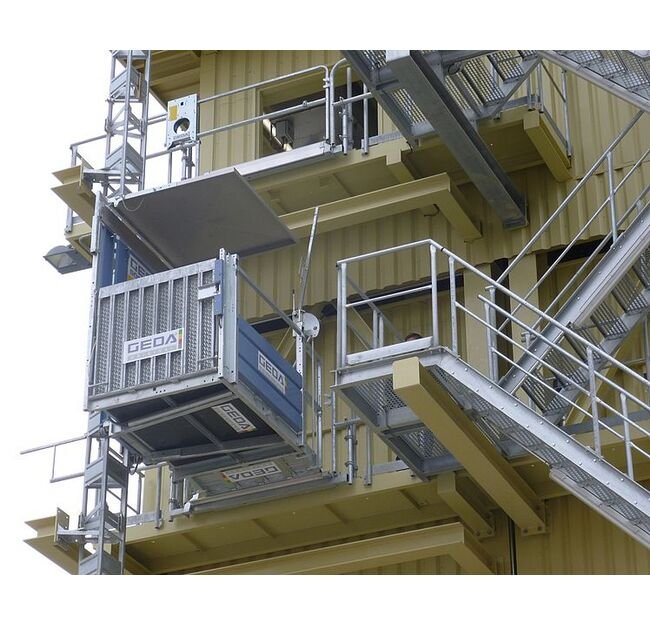

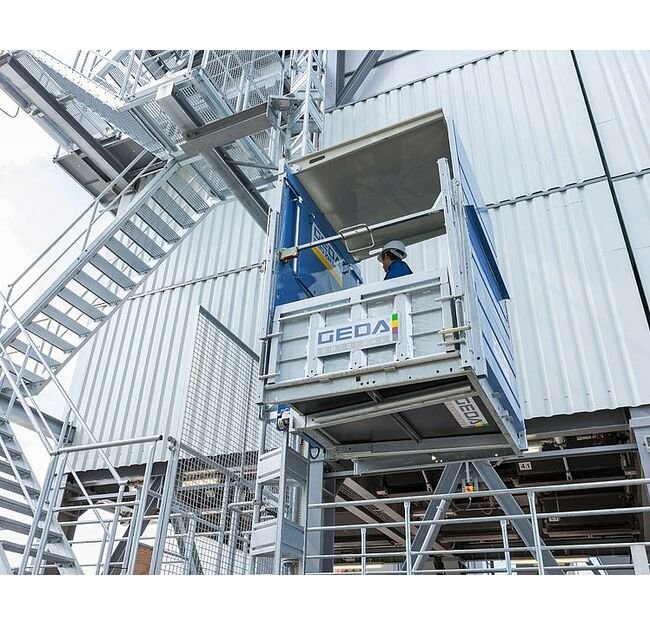

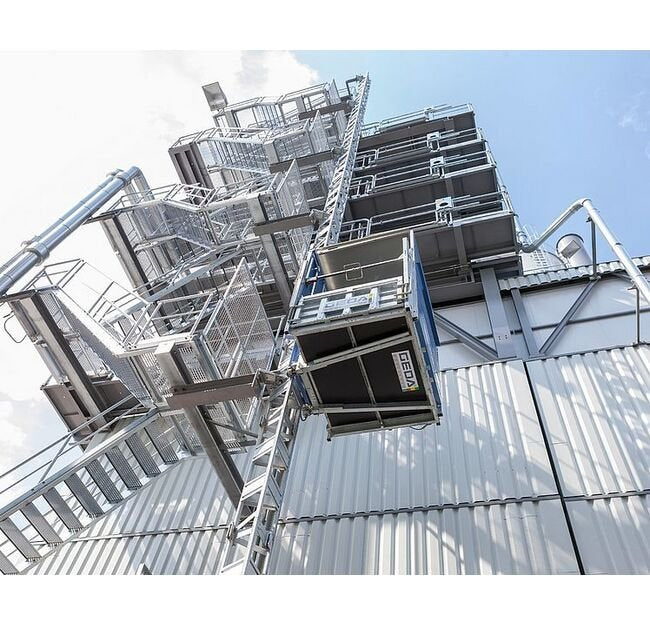

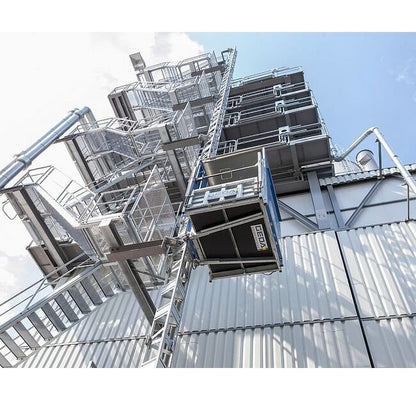

The GEDA 500 ZP P have turned out to be efficient height access technology tools throughout the years. They have been transporting people and materials on asphalt producing plants, gravel plants, silos, etc.These transport platforms facilitate and accelerate regular inspections, service and maintenance.Often the producers of mixing machines use these hoist as a useful option for the ordinary stairs tower.

Product Specifications

Additional Information

They can also be additionally installed to already existing silos and plants without great effort and without any problems. This is possible thanks to low anchoring forces as well as to the fact that occurring vertical loads can be lead down to the basement via the mast.These transport platforms are a good-value for money alternative as you do not need a pit, a machine house and supporting constructions.

Platform Dimension Platform Height

1.1 m | 1.8 m

Platform Dimension Platform Length

1.6 m

Platform Dimension Platform Width

1.4 m

Power Supply Current

16 A

Power Supply Frequency

50 Hz

Power Supply Power

3 kW

Power Supply Voltage

400 V

Specifications Cargo

Material | Persons

Specifications Lifting Height

100 m

Specifications Lifting Speed

12 m/min

Specifications Load Capacity

5 Persons

Specifications Mast System

GEDA UNI-MAST

Specifications Material Load Capacity

500 kg

Specifications Place Of Origin

Germany

GEDA 500 ZP P Transport Platform Hoists for Personnel and Materials
