GEDA AB 450 Suspended Working Platforms

Name: GEDA AB 450 Suspended Working Platforms
Brand: GEDA USA, LLC
SKU: GED-84d200
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-84d200

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

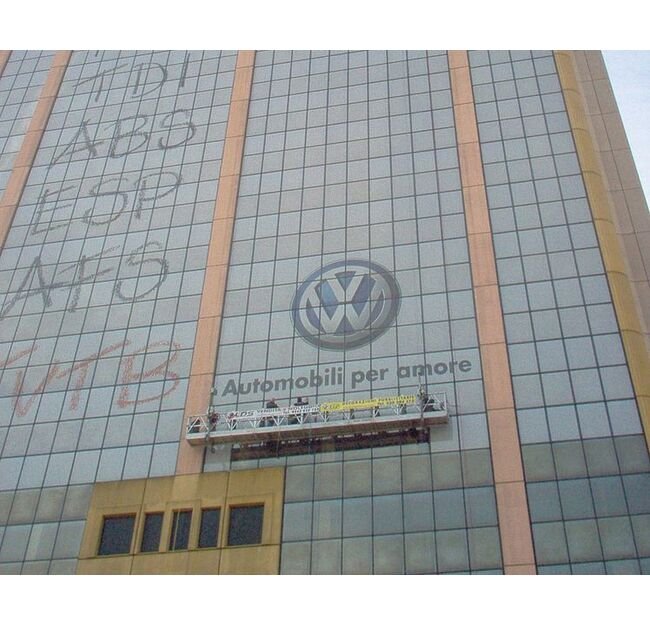

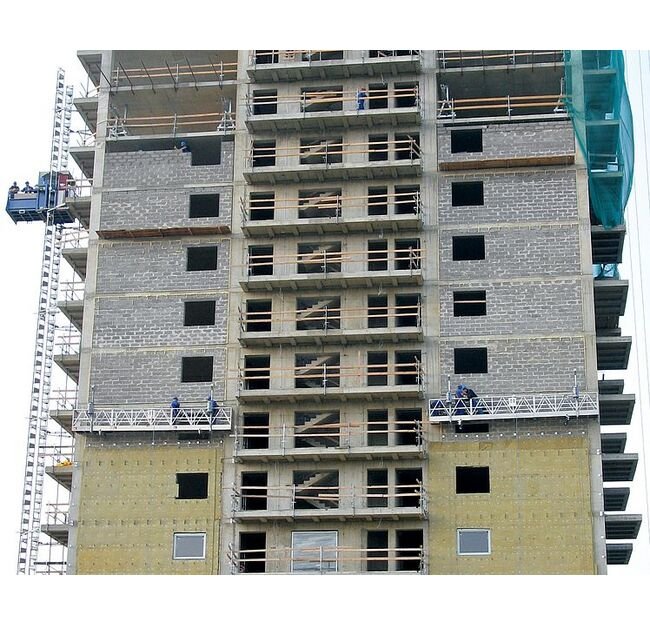

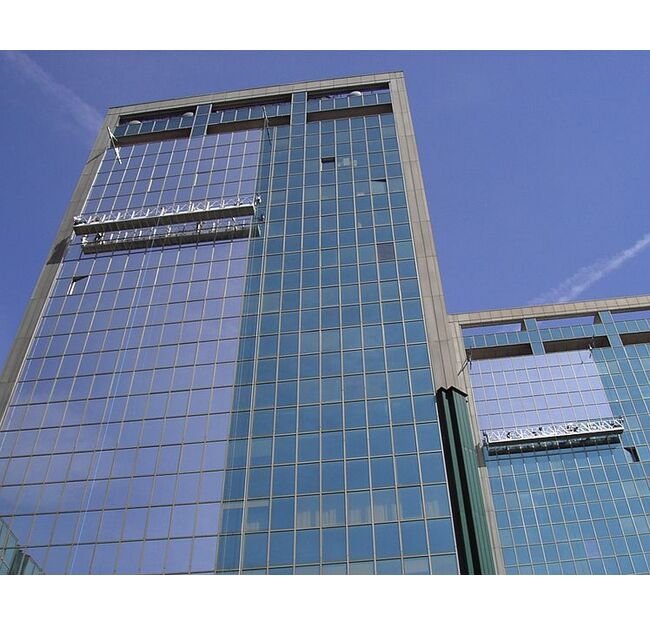

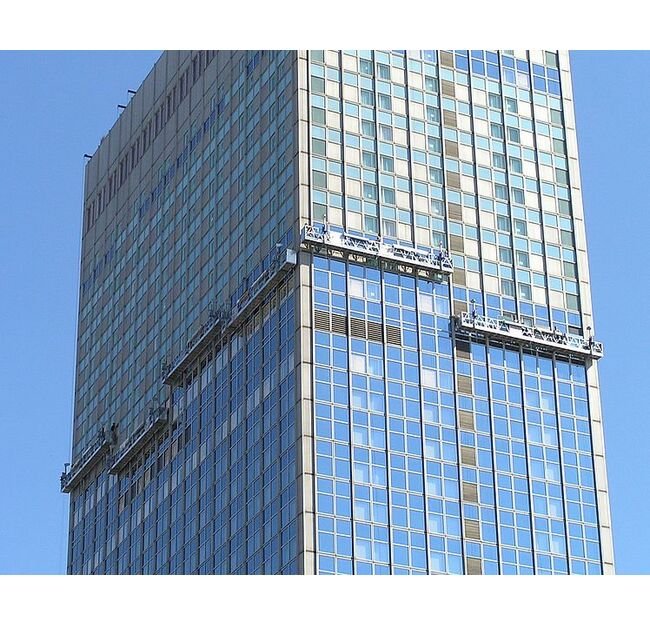

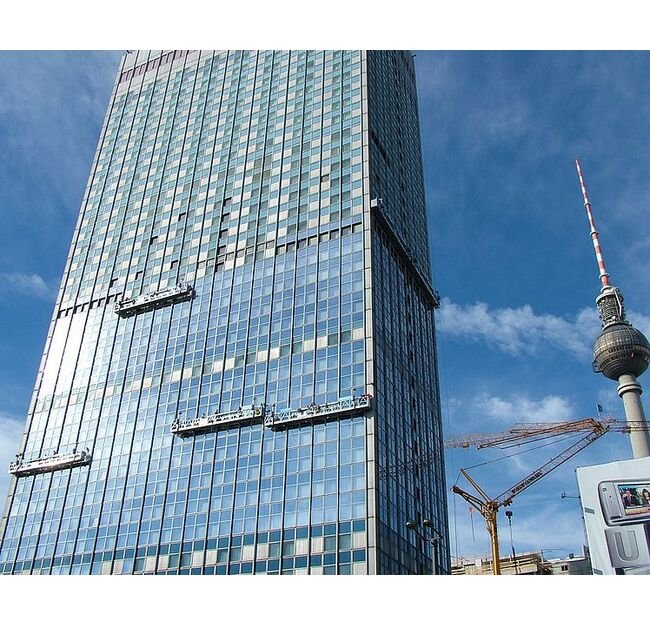

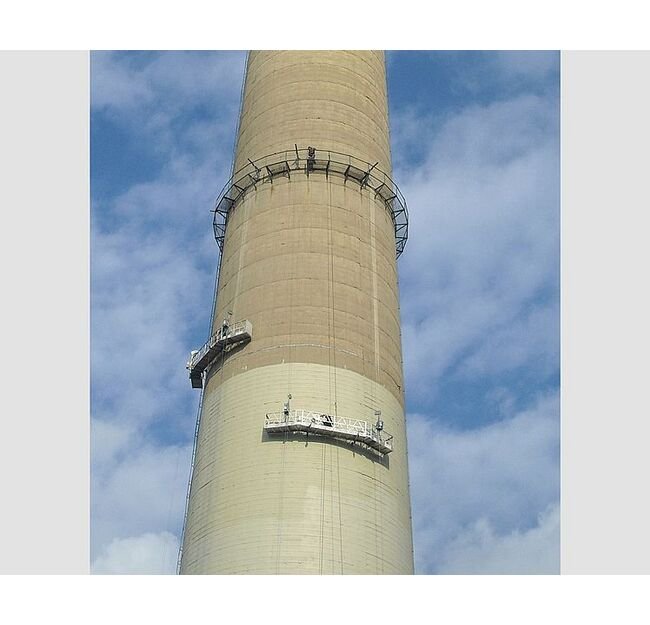

With the rope suspended working platforms from GEDA, you can work on building façades, but also on silos, towers, cooling towers, industrial plants, pits, etc. without a scaffold.The platform offers enough space for people and materials. You can exactly adjust the working height of the platform to the centimeter, which always grants ergonomic posture.The hot-dip galvanized outriggers on the roof are easily installed and removed because of their plug connections. The components are very lightweight and can be transported by one person. This facilitates moving the platform.

Product Specifications

Additional Information

Angle track section and brackets make it possible to adapt the platform the different shapes of the buildings.GEDA rope suspended working platforms are of very high technical standard - the integrated inclination compensating device and the overload safety device allow for safe work!

Platform Dimension Platform Length

1 to 14 m

Power Supply Current

16 A

Power Supply Frequency

50 Hz

Power Supply Power

1.4 kW

Power Supply Voltage

400 V

Specifications Alternating Current Ac Control Voltage

48 V

Specifications Cargo

Material | Persons

Specifications Lifting Speed

8 m/min

Specifications Place Of Origin

Germany

Specifications Traction Force

450 kp

GEDA AB 450 Suspended Working Platforms
