GEDA Maxi 120 S Rope Hoists

Name: GEDA Maxi 120 S Rope Hoists
Brand: GEDA USA, LLC
SKU: GED-fed333
Price: 49.99 USD
Availability: OutOfStock

SKU:GED-fed333

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

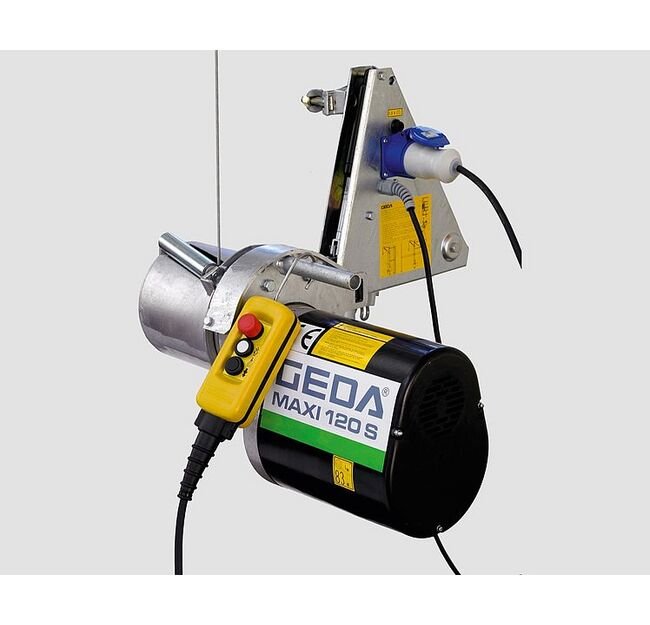

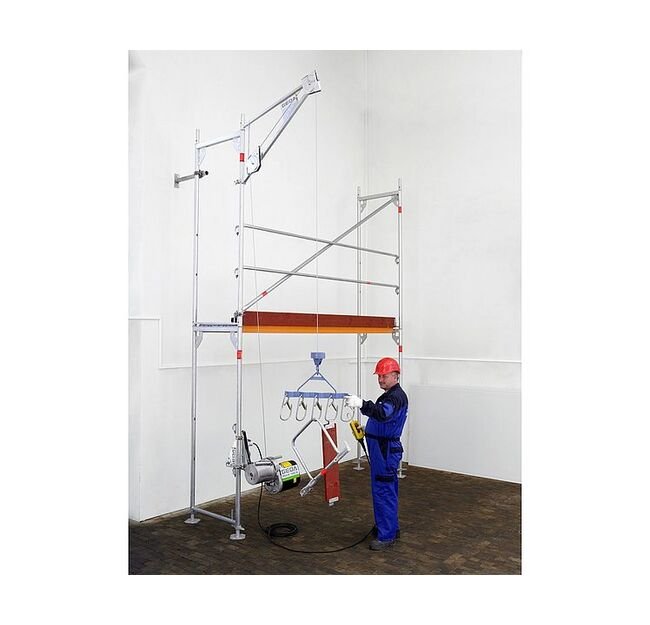

Rope hoists especially for scaffolders.Two lifting speeds, an overload protection and a slack rope switch as well as a variety of different load receptacles make these fast scaffold assembly hoists the ideal tool for rationally and safely transporting scaffold components and building materials.You do not need to transport the handy drive of the rope drum to the top. It can simply be installed to the scaffold on the bottom. You can install the lightweight swivel arm in the desired height to the scaffold on the top.

Product Specifications

Additional Information

Quick assembly and their easily being moved are the biggest advantages of the GEDA scaffold assembly hoists. The maximum working height of 40 m can be extended to 76 m if you install the winch in a higher position.Apart from scaffolders, it is mainly roofers and painters who use these speedy tools to transport their materials onto the scaffold.

Power Supply Current

16 A

Power Supply Frequency

50 Hz

Power Supply Power

0.45 kW | 1.35 kW

Power Supply Voltage

230 V

Specifications Cargo

Material

Specifications Lifting Height

76 m

Specifications Lifting Speed

20 m/min | 60 m/min

Specifications Material Load Capacity

120 kg

Specifications Place Of Origin

Germany

Specifications Rope Length

81 m
