GEDA PH 3240 Personnel and Material Hoists
GEDA PH 3240 Personnel and Material Hoists
SKU:GED-021bbc
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
GEDA PH 3240 Personnel and Material Hoists
$49.99
Quantity: 1
Claim Your Seller Account
GEDA PH 3240 Personnel and Material Hoists
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

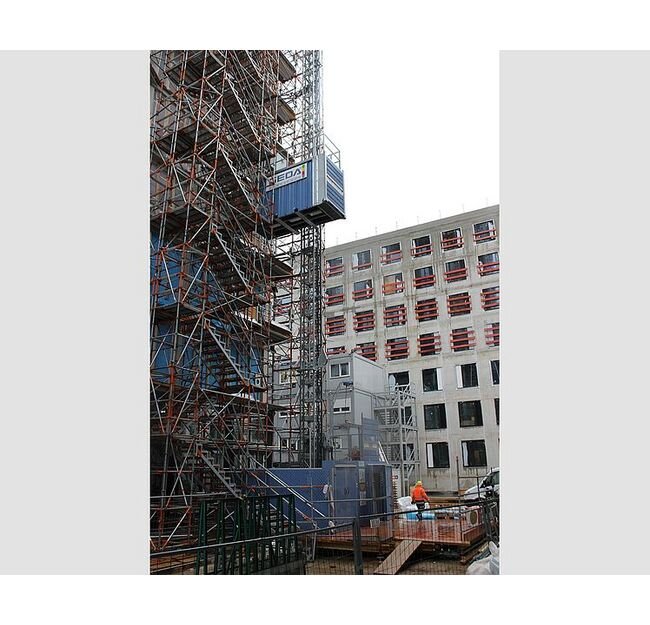

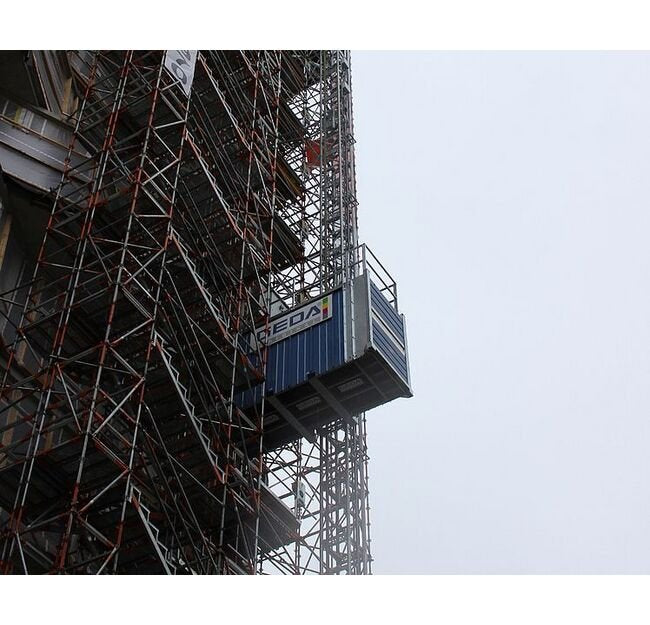

The GEDA PH personnel and material hoist is now as a complete series available. Three standard versions have been developed up to now. All adjustable to desired specifications or conditions at construction site. Lifting height up to 400 m and three different lifting speeds and different car sizes are available. Both mast systems enable single and twin usage.
Product Specifications
Additional Information
You can choose between three standard control systems: stop next landing, single automatic or fully automatic. Different door systems in combination with the electrically and mechanically interlocked landing level gates round off the profile of the new PH range. The well-known engineered safety features like the over speed safety brake and overload protection or limit switches at the upper and lower level are of course part of the standard equipment.Of course the PH range is configurated according the new EN machinery directive 2006/42/EG or to national valid regulations.
Platform Dimension Platform Height
2.1 m
Platform Dimension Platform Length
4 m
Platform Dimension Platform Width
1.55 m
Specifications Cargo
Material | Persons
Specifications Lifting Height
400 m
Specifications Lifting Speed
90 m/min
Specifications Load Capacity
30 Persons
Specifications Mast System
GEDA PH-MAST
Specifications Material Load Capacity
3,200 kg
Specifications Place Of Origin
Germany
