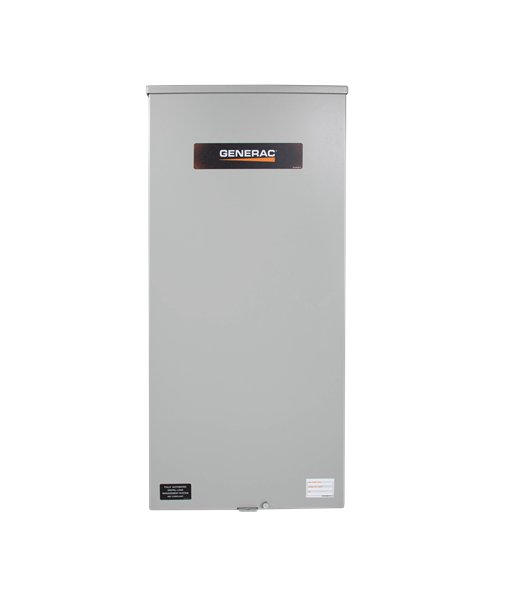

Generac 200A Automatic Transfer Switch with 20 Circuit Load Center
Generac 200A Automatic Transfer Switch with 20 Circuit Load Center
SKU:RES-fd51a0
Power through with the Generac 200A ATS & 20 Circuit Load Center!
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Generac 200A Automatic Transfer Switch with 20 Circuit Load Center
$899.99
Quantity: 1
Claim Your Seller Account
Generac 200A Automatic Transfer Switch with 20 Circuit Load Center
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Generac 200 Ampere Current Service Rated Automatic Transfer Switch with 20 Circuit Load Center is a top-tier solution for both residential and commercial applications. This ATS features a NEMA 3R enclosure, service entrance rating, and the ability to handle up to 40 circuits with tandem breakers. With built-in load shedding capabilities, manage up to four HVAC loads seamlessly without additional accessories. Its outdoor-rated enclosure ensures protection from various weather conditions, making it a versatile and efficient choice for ensuring continuous power supply.
Product Specifications
Features And Benefits Features And Benefits
Service Entrance RatedThis switch can act as your utility service entrance disconnect for installation in the United States, as the switch has a built in service disconnect breaker. Intelligent Load ManagementManage up to four HVAC loads with no additional hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.NEMA 3R Outdoor Rated EnclosureDesigned to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
Technical Specs Brands
Generac®
Technical Specs Canada Approved
false
Technical Specs Circuited
Yes
Technical Specs Circuited Quantity
40
Technical Specs Current
200 A
Technical Specs Enclosure Type
3R
Technical Specs Frequency
60 Hz
Technical Specs Home Link
false
Technical Specs Load Shedding
Built-In
Technical Specs Load Shed Integrated
false
Technical Specs National Electrical Manufacturers Association Ne
3
Technical Specs Phase
1
Technical Specs Pre Wired
false
Technical Specs Service Entrance Rated
Yes
Technical Specs Single Load
false
Technical Specs Transfer Method
Automatic
Technical Specs Voltage
120 V | 240 V
Technical Specs Warranty
5 years
Technical Specs Whole House
false
