General Construction Grade LFMC - Type EF Liquid-Tight Flexible Metal Conduit

Name: General Construction Grade LFMC - Type EF Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-8010af
Price: 189.99 USD
Availability: OutOfStock

SKU:LIQ-8010af

Flexible, liquid-tight, and RoHS WEEE certified conduit for secure and reliable wiring installations.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

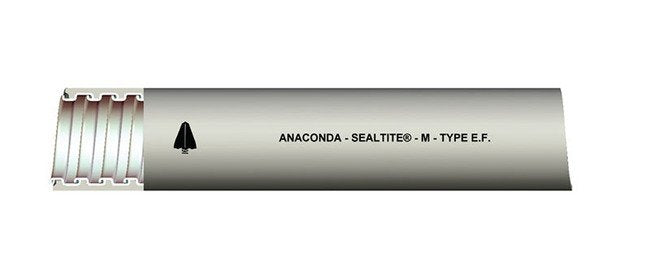

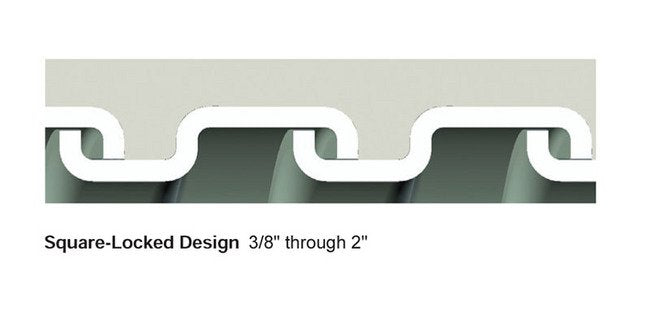

The General Construction Grade LFMC Type EF Liquid-Tight Flexible Metal Conduit provides a flexible and liquid-tight raceway solution for wiring applications. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit offers superior protection for electrical conductors. With an IP 67 rating when paired with approved connectors, it ensures secure installations. Designed for General Construction Grade applications, it features a temperature range of -4ºF to +140ºF (-20ºC to +60ºC). The conduit is RoHS WEEE certified, offering a compliant and reliable solution for various projects.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

45 lbs | 20.41 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

80132 | EF-13 | EFLT-1 | EXLT-1

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Standard SEALTITE® Type EFST is recommended in sizes above 2"

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Standard Carton

Specifications Type

General Construction Grade LFMC - Type EF Liquid-Tight Flexible Metal Conduit
