General Construction Grade Liquid-Tight Flexible Metal Conduit

Name: General Construction Grade Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-9c7660
Price: 89.99 USD
Availability: OutOfStock

SKU:LIQ-9c7660

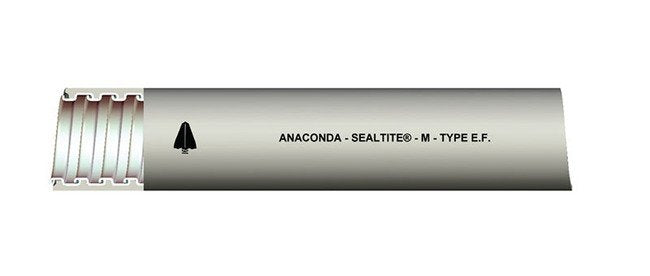

Type EF - General Construction Grade Liquid-Tight Flexible Metal Conduit (LFMC) provides flexible, liquid-tight wiring protection for general construction applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

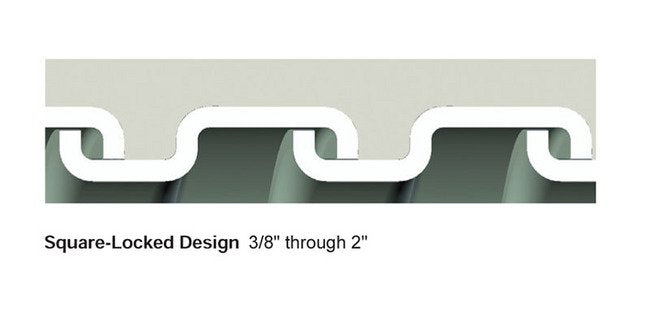

The Type EF General Construction Grade Liquid-Tight Flexible Metal Conduit (LFMC) is a reliable solution for wiring applications where agency approvals are not required. This conduit features a flexible yet sturdy construction, with a continuously interlocked hot dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket. Rated IP 67 when paired with approved end connectors, it offers a secure and liquid-tight raceway for electrical conductors. Suitable for general construction grade applications, this conduit is designed for a temperature range of -4ºF to +140ºF (-20ºC to +60ºC), providing superior wiring protection in a full range of trade sizes from 3/8" to 2".

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

26 lbs | 11.79 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Standard SEALTITE® Type EFST is recommended in sizes above 2"

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Carton

Specifications Type

General Construction Grade Liquid-Tight Flexible Metal Conduit
