General Purpose Diaphragm Seals - Type S Series
General Purpose Diaphragm Seals - Type S Series
SKU:TYP-49e227
Durable and versatile General Purpose Diaphragm Seals for industrial processes. Sizes: 1/4" to 10". Pressure: 15-10000 psig.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
General Purpose Diaphragm Seals - Type S Series
$349.99
Quantity: 1
Claim Your Seller Account
General Purpose Diaphragm Seals - Type S Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

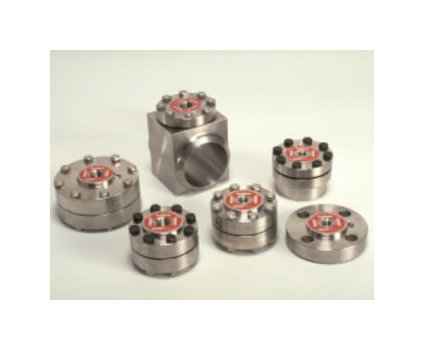

The Type S Series General Purpose Diaphragm Seals are designed to meet the demanding needs of industrial processes. With process sizes ranging from 1/4 inch to 10 inches and a variety of connection types including National Pipe Thread (NPT), Flanged, In-line Flow Thru, and Saddle, these seals offer versatility and compatibility. Constructed with materials like 316 Stainless Steel, Hastelloy® C, Inconel®, Monel®, and Titanium, they ensure durability and corrosion resistance. Pressure ratings from 15 to 10000 psig make them suitable for a wide range of applications, providing reliable performance under varying conditions.
Product Specifications
Specifications Connections Type
National Pipe Thread (NPT)FlangedIn-line Flow ThruSaddle
Specifications Diaphragms
316 Stainless SteelHastelloy® CInconel®Monel®TitaniumNickelTantalum
Specifications Exposed Materials
316 Stainless SteelSteelHastelloy® CInconel®Monel®Titanium
Specifications Pressure Ratings
15 to 10000 psig
Specifications Process Sizes
1/4 Inch (in) thru 10
