General Purpose Threaded Plug for Unified Threads
General Purpose Threaded Plug for Unified Threads
SKU:GEN-6be496
Seal Unified/Straight threads effectively with MOCAP's General Purpose Threaded Plug. RoHS compliant, leak-proof design for precision sealing.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
General Purpose Threaded Plug for Unified Threads
$79.99
Quantity: 1
Claim Your Seller Account
General Purpose Threaded Plug for Unified Threads
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The General Purpose Threaded Plug for Unified Threads by MOCAP is an essential solution designed to seal Unified/Straight threads and fittings effectively. Featuring a slotted design with a 12-point head for easy tightening, this plug ensures a secure fit on SAE straight-threaded ports. Crafted from RoHS compliant red polypropylene with an O-Ring style bead for leak prevention, the plug's external lip on the flange protects against contaminants. Available in various sizes with convenient Micro-Pack and Mini-Pack options, these plugs are ideal for industries requiring precision and reliability.
Product Specifications
Additional Information 0
Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.
Manufacturing Notes 0
MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

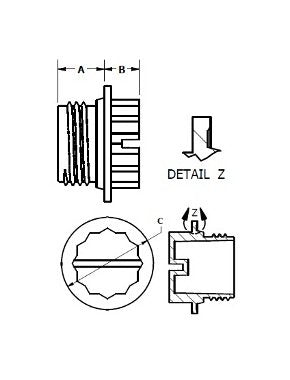

Specifications Box Quantity
5000
Specifications Color
Red
Specifications Flange Outer Diameter Dimension C
0.870 in | 22.1 mm
Specifications Length Dimension A
0.360 in | 9.1 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.300 in | 7.6 mm
Specifications To Fit Standard Thread Size
5/8-18
