Genie Mark II 18-Inch Bullwhip Throttle Control System
Genie Mark II 18-Inch Bullwhip Throttle Control System
SKU:BUL-48d618
Enhance engine efficiency and reduce noise with the Genie Mark II 18-Inch Bullwhip Throttle Control System.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Genie Mark II 18-Inch Bullwhip Throttle Control System
$329.99
Quantity: 1
Claim Your Seller Account
Genie Mark II 18-Inch Bullwhip Throttle Control System
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

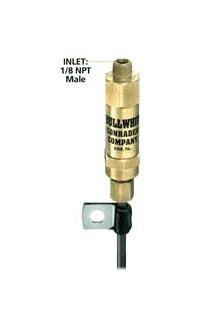

The Genie Mark II 18-Inch Bullwhip Throttle Control System is a precision-engineered solution designed to enhance the performance and efficiency of gas and diesel engines. With a capacity of 20 ft³/min and a maximum working pressure of 250 psi, this system ensures optimal control and operation. It reduces noise, heat, fuel consumption, and wear by returning the engine to idle when the air compressor is unloaded. Featuring field-adjustable unloader pilot valve features, stainless steel components, and compatibility with various engine models, this throttle control system offers superior performance at a lower cost while being easy to install and adjust.
Product Specifications

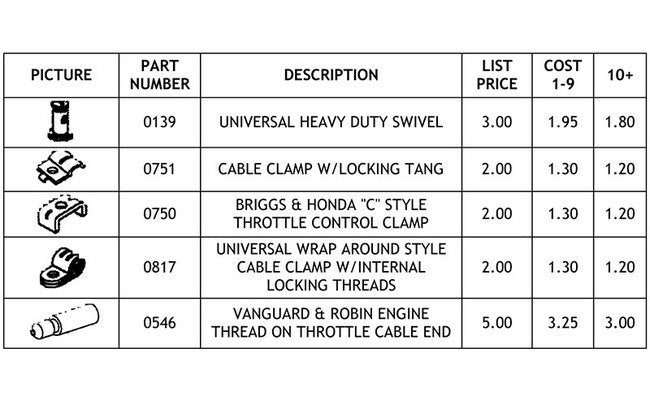

Accessories 0
Part Number - 0139Description - Universal heavy-duty swivelPart Number - 0751Description - Cable clamp with locking tangPart Number - 0750Description - Briggs & Honda "C" style throttle control clampPart Number - 0817Description - Universal wrap around style cable clamp with internal locking threadsPart Number - 1546description - Vanguard & robin engine thread on throttle cable end
Features 0
Reduces air connections Vibration resistantOne model fits all of the most popular engines (Briggs- Kohler, Honda, etc.) 1/8" male NPT port connectionPermanently lubricated, self-cleaning cableSuitable for use with all Conrader pilot valves and piloted discharge line unloadersEasily adjusted with standard toolsEliminates mounting brackets and wire linkageComplete with instructions and mounting hardware
Specifications Brand
Genie | Mark II
Specifications Capacity
20 ft³/min
Specifications Compression Tube Fitting Size
1/4 in
Specifications Inlet Size
1/4 in
Specifications Inlet Thread
National Pipe Thread (NPT)
Specifications Length
18 in
Specifications Makes Conversion From Electric To Gas Simple And
Convert any pressure switch control compressor to constant speed unloader type. Can be applied to any compressor where air consumption exceeds 50 percent of free air delivery. Control is set to cut-in at 100 psi. Range and differential can be adjusted to suit needs.
Specifications Material
Body - Precision Machined Forged Brass | Springs and ball - Stainless Steel
Specifications Maximum Operating Temperature
450 ºF
Specifications Maximum Working Pressure
250 psi
Specifications National Pipe Threads Npt Port Connection Type
Male
Specifications National Pipe Threads Npt Size
1/8 in
Specifications Note
With 1/4" pipe tap for engine idler
Specifications Outlet Size
1/8 in
Specifications Part Number
LGM20TD | P25
Specifications Pipe Tap Size
1/4 in
Specifications Product Key

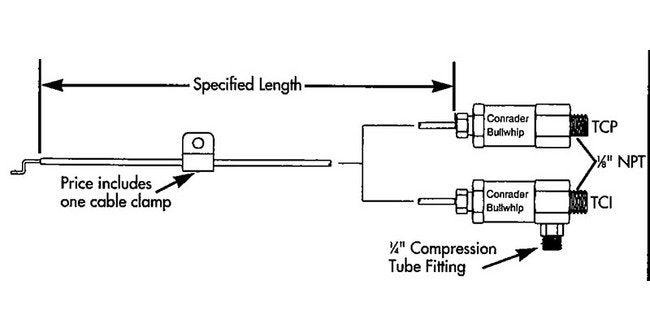

TCP = throttle control for compressor with plain heads and unloaded with a discharge line unloader | Xx = the length of the cable in inches (example: TCP12 = a plain head compressor throttle control with a 12" cable)

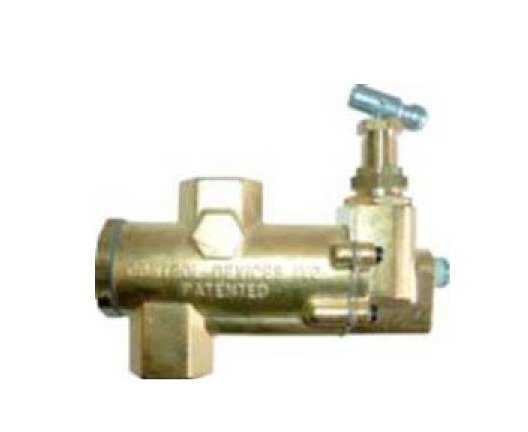

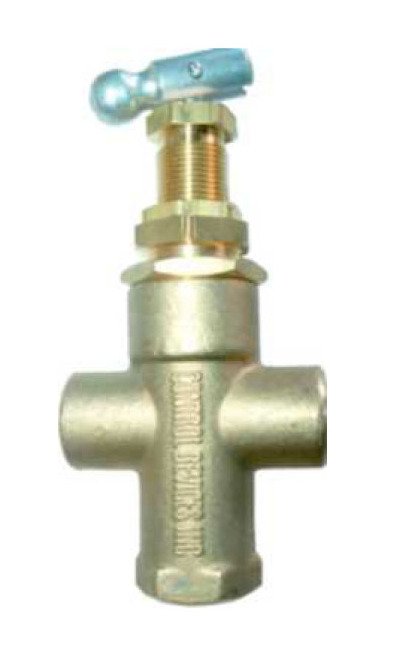

Specifications Unloader Pilot Valve Features
Variable range and differentialField adjustable (or factory preset)Manual unloader sleeveSimple trouble-free designBetter performance at lower cost
Specifications Working Pressure Range
50 to 135 psi
