German Design IA Series 300L Rotary Vibratory Tumbling Machine
German Design IA Series 300L Rotary Vibratory Tumbling Machine
SKU:MAS-93f2df
Achieve precise deburring and polishing with the German Design IA Series 300L Vibratory Tumbler.
Regular price
$7,299.99
Regular price
Sale price
$7,299.99
Unit price
per
Initiate Order
German Design IA Series 300L Rotary Vibratory Tumbling Machine
$7,299.99
Quantity: 1
Claim Your Seller Account
German Design IA Series 300L Rotary Vibratory Tumbling Machine
$7,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

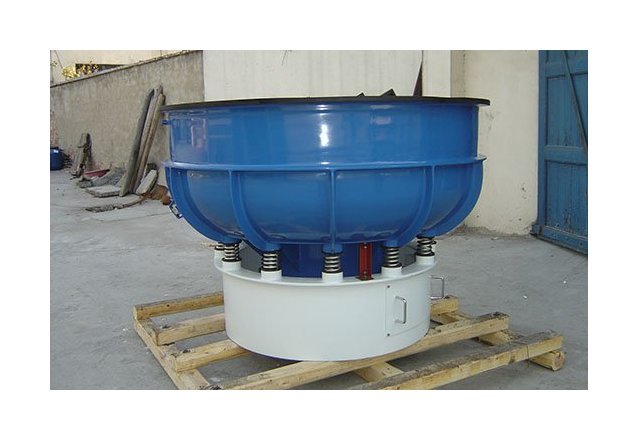

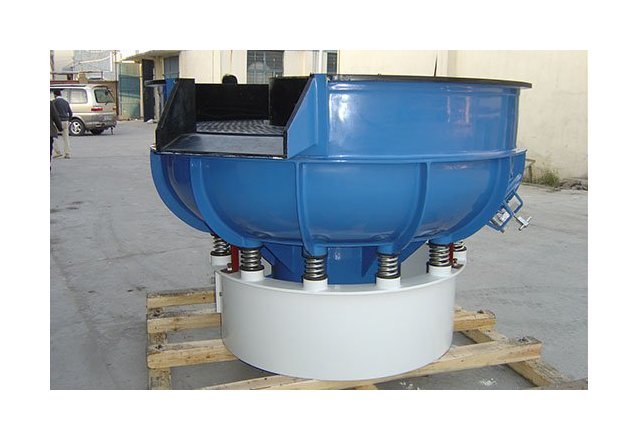

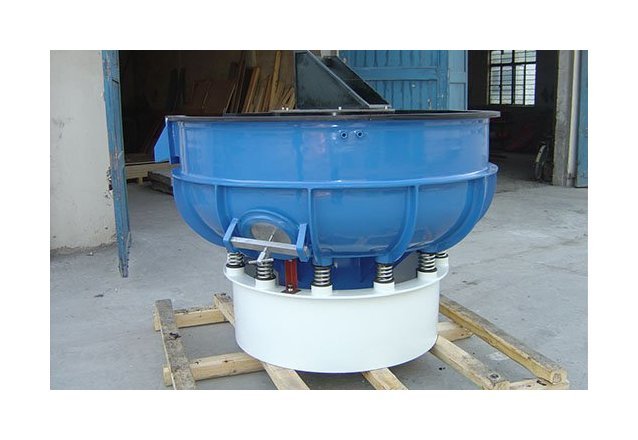

Experience superior deburring and polishing with the German Design IA Series 300L Rotary Vibratory Tumbling Machine. This heavy-duty machine features a rigid structure, a shallow incline processing channel, and a wear-resistant PU lining for optimal performance. With a total volume of 300 liters and customizable settings like an insertable separation gate and variable frequency drive, this vibratory finishing machine is ideal for small to medium parts. Compliance with federal procurement standards ensures reliability for institutional users.
Product Specifications
Features

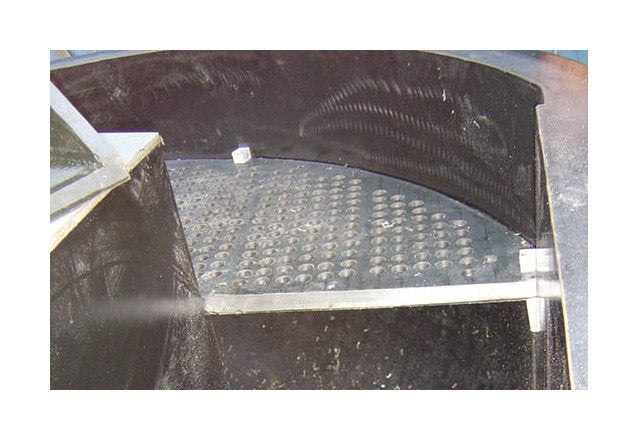

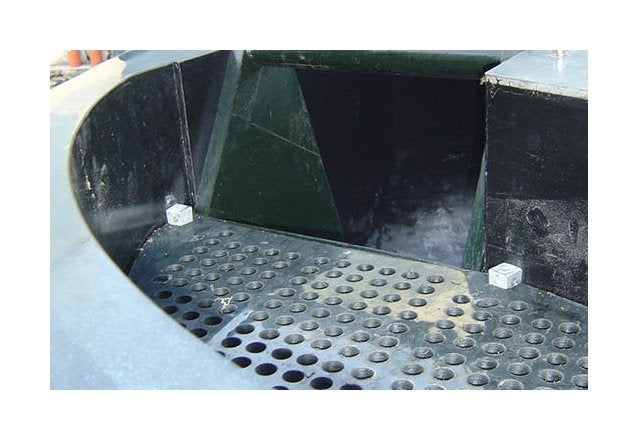

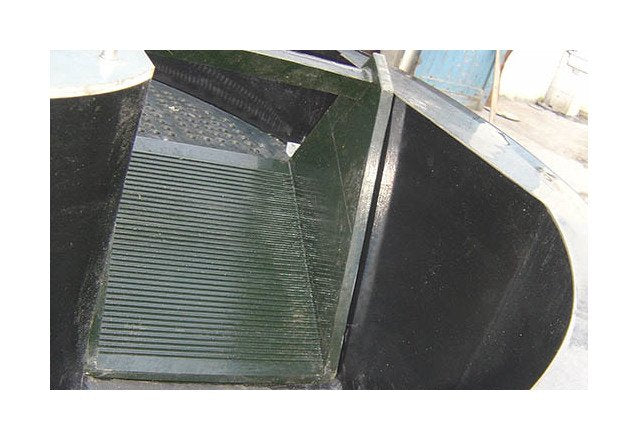

Shallow incline processing channelManually insertable separation gateLarge surface and easy to change separation panelWear resistant PU liningFlexible design control panel and compound dosing systemThe German design vibratory tumbling machine has a rigid structure with an insertable separation table. This machine is a general purpose vibratory finishing machine with a shallow incline of process channel which is ideal for small parts and medium parts deburring and polishing.This machine is possible for manual insertable separation gate or customized with automatic pneumatic control. In addition, the vibratory bowl equipped with large area separation screens. The hot poured casting PU is very wear resistant.
Optional Settings
Dosing pumpVariable frequency driveAcoustic noise proof coverPneumatic level shutter/Insertable gate for separation/manual flap for separation
Separation Area Separation Length
1000 mm
Separation Area Separation Width
300 mm
Specifications External Diameter
1300 mm
Specifications Machine Height
1200 mm
Specifications Media Unload Plug
580 mm
Specifications Motor Power
3.7 kW
Specifications Motor Speed
1450 rpm
Specifications Processing Bowl Diameter
300 mm
Specifications Total Volume
300 L
Specifications Type
Vibratory
Specifications Unloading Height
960 mm
