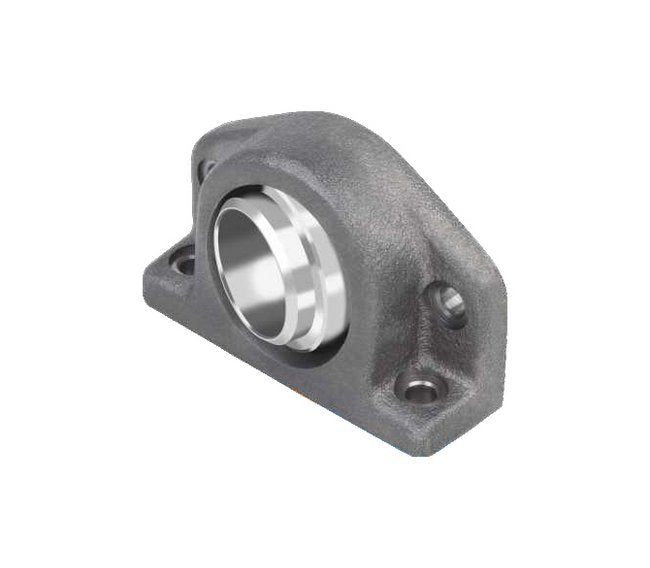

GGB UNI Self-Aligning Pillow Block Bearing Set with 28-40mm Inner Diameter
GGB UNI Self-Aligning Pillow Block Bearing Set with 28-40mm Inner Diameter
SKU:UNI-299a23
Precisely engineered GGB UNI Self-Aligning Pillow Block Bearing for industrial applications, with high load capacity & versatile design
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
GGB UNI Self-Aligning Pillow Block Bearing Set with 28-40mm Inner Diameter
$89.99
Quantity: 1
Claim Your Seller Account
GGB UNI Self-Aligning Pillow Block Bearing Set with 28-40mm Inner Diameter
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GGB UNI Self-Aligning Pillow Block Mounted Bearing is a precision-engineered solution designed to accommodate misalignment equalization, making it ideal for industrial applications such as wind energy plants, handling systems, and marine equipment. With a maximum radial load capacity of 30000 N for the housing and 15000 N for the bolt, this bearing set ensures reliable performance under high loads. Its self-aligning feature with a spheric design prevents edge load, and adjustable up to ±5°, providing versatile and efficient bearing solutions. Made to order and compatible with various bearings from the GGB product program, this bearing set offers robust and customizable solutions for demanding industrial needs.
Product Specifications
Applications Applications
Industrial: Wind energy plants, car washes, cleaning machines, drum systems, beveling equipment, handling systems, conveyor belts (pulleys), printing machines, heating and ventilation equipment, hoists, cranes, textile machinery, special machine engineering, bakery equipment, marine equipment.
Availability Availability
Made to order
Characteristics Characteristics
Adjusting bearing for misalignment equalizationAll-purpose as flange or pedestal bearing, suitable for high loadsSelf-aligning spheric avoids edge load to the bearingAdjustable up to ± 5ºSpheric is secured against distortionDepending on choice of housing, spherics and bearings, simple to most demanding bearing solutions are possibleFor optimum design solutions, various bearings from the GGB product program are applicable
Note Note
UNI is a trademark of GGB.The given data for UNI bearing housings are valid for 12.9 screws (DIN EN 20898, part 1), since the housing stability exceeds the permissible load of the fixing screws.
Specifications Bush Inner Diameter
28 to 40 mm
Specifications Features
Self-Aligning
Specifications Maximum Radial Load Bolt
15000 N | 3300 lb
Specifications Maximum Radial Load Housing
30000 N | 6700 lb
Specifications Maximum Shear Off Load Bolt
1500 N | 330 lb
Specifications Size
2
Specifications Style
Housing | Pillow Block
