Glass-Fiber Single Arm Lever with Plated Steel Finish
Glass-Fiber Single Arm Lever with Plated Steel Finish
SKU:LEV-5b6a66
Durable Glass-Fiber Single Arm Lever with Plated Steel Finish for precise control and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Glass-Fiber Single Arm Lever with Plated Steel Finish
$24.99
Quantity: 1
Claim Your Seller Account
Glass-Fiber Single Arm Lever with Plated Steel Finish
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

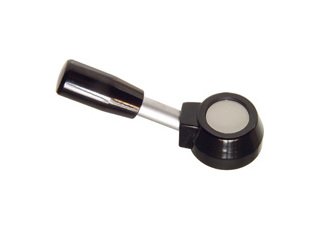

The Glass-Fiber Single Arm Control Lever with a Plated Steel Finish is a durable and reliable control lever designed for precision and smooth operation. Crafted with glass-fiber thermoplastic and a black oxide steel insert, this lever ensures lasting performance. The hub features two holes for spring and ball detent insertion, with angle limit stop pin slots for added control. With an Elsea Original Design, this lever guarantees quality and functionality for various applications.
Product Specifications
Specifications Alternate Pn
29201
Specifications A Base Diameter
1.77 in
Specifications B Bushing Id
0.32 in
Specifications Country Of Origin
-
Specifications C Bushing Od
0.87 in
Specifications D Trim Disk Diameter
0.98 in
Specifications E Hole Spacing
0.24 in
Specifications Finish
Plated Steel Arm with a Black Oxide Steel Insert
Specifications F Overall Height
2.05 in
Specifications G Hole Depth
0.87 in
Specifications H Base Height
0.98 in
Specifications I Hole Location 1
1.10 in
Specifications J Hole Location 2
1.26 in
Specifications K Overall Length To Center Line
4.25 in
Specifications Material
Glass-Fiber Thermoplastic
Specifications Protrusion
0.02 in
Specifications Type
Single Arm Control Lever
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
