Glass Melamine Rod G-9
Glass Melamine Rod G-9
SKU:SHA-abe402
High-quality Glass Melamine Rod G-9 - meets MIL-I-24768/1 Type GME standards, offers exceptional hardness, stability, and arc resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Glass Melamine Rod G-9
$29.99
Quantity: 1
Claim Your Seller Account
Glass Melamine Rod G-9
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

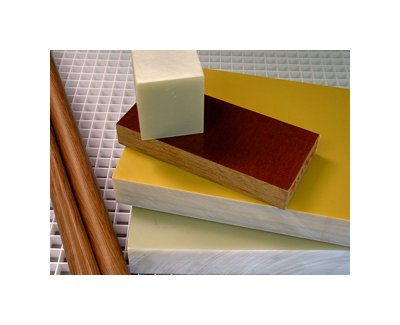

The Glass Melamine Rod G-9, ground from sheet material, meets stringent MIL-I-24768/1 Type GME standards. This thermoset composite combines the strength of glass woven cloth with a melamine resin binder, offering exceptional hardness, dimensional stability, and arc resistance. With high mechanical, thermal, and electrical properties, it is ideal for diverse industrial applications requiring reliable support components.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.0 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
0.83 x 10-5 in/in/ºF
Specifications Compressive Strength
70000 psi
Specifications Density Astm D792
1.95 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
V0
Specifications Flexural Modulus Crosswise Astm D790
13 x 105 psi
Specifications Flexural Modulus Lengthwise Astm D790
16 x 105 psi
Specifications Flexural Strength Crosswise Astm D790
58000 psi
Specifications Flexural Strength Lengthwise Astm D790
82000 psi
Specifications Hardness Rockwell Astm D785
M120
Specifications Izod Impact Strength Notched Crosswise Astm D256
9 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
16 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
300 ºF
Specifications Tensile Strength Crosswise Astm D638
32000 psi
Specifications Tensile Strength Lengthwise Astm D638
41000 psi
Specifications Tolerance
± 0.001 in
Specifications Water Absorption 24 Hrs At 0125 Astm D570
0.28 %
