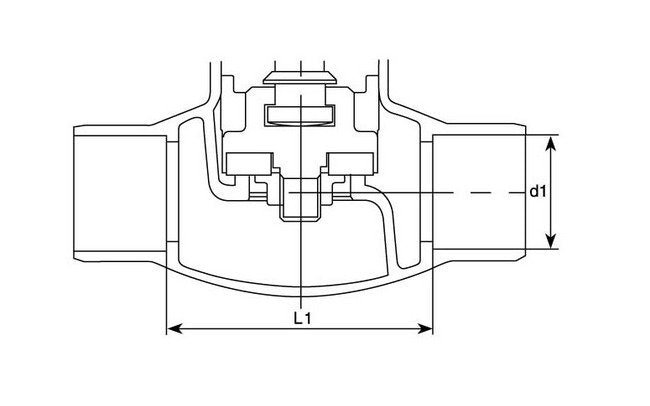

• Globe Class 150 Bronze Solder Valve - Image 1
1 1
Caylor Industrial Sales, Inc. →

Globe Class 150 Bronze Solder Valve

Globe Class 150 Bronze Solder Valve

VAL-f708f6

Premium Globe Class 150 Bronze Valve for high-pressure applications, featuring Union-Bonnet design and G/F PTFE Disc. Meets ANSI standards.

$34.99
$34.99
Sale

Initiate Order

Globe Class 150 Bronze Solder Valve

Globe Class 150 Bronze Solder Valve

$34.99

Quantity: 1

Claim Your Seller Account

Globe Class 150 Bronze Solder Valve

Globe Class 150 Bronze Solder Valve

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Globe Class 150 Bronze Solder Valve is a top-quality valve designed for superior performance in demanding environments. With features like Union-Bonnet design, Inside Screw mechanism, Rising Stem for precise control, and a durable G/F PTFE Disc, this valve ensures reliable operation under high pressures up to 150 PSI for Saturated Steam and 300 PSI for Cold Water, Oil, or Gas. Made from premium Cast Bronze materials, it meets industry standards such as ANSI B1.20.1 for Threaded Ends and ANSI B16.18 for Solder Joint Ends, ensuring compliance with rigorous quality requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
1.88
Specifications Carton Qty
24
Specifications Class
C150D
Specifications Dimension D1
3.54
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
5.35
Specifications Dimension L
3.07
Specifications Dimension L1
2.24
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
