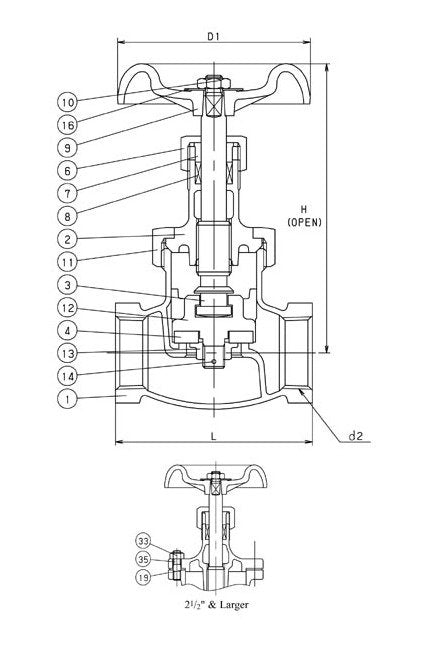

• Globe Class 150 Bronze Threaded Valve - Image 1
1 1
Caylor Industrial Sales, Inc. →

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

VAL-c1d0ee

Premium Globe Class 150 Bronze Threaded Valve for steam, water, oil, and gas applications. Durable, reliable, and ANSI/MSS compliant.

$129.99
$129.99
Sale

Initiate Order

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$129.99

Quantity: 1

Claim Your Seller Account

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Globe Class 150 Bronze Threaded Valve is a high-quality valve designed for a wide range of applications, from saturated steam to cold water, oil, or gas. With a pressure rating of 150 PSI for steam and 300 PSI for non-shock cold water applications, this valve ensures reliable performance in various settings. Made of durable cast bronze materials with a G/F PTFE disc, this valve guarantees longevity and efficiency. Its precise dimensions, union-bonnet design, inside screw, and rising stem construction make it easy to install and operate. Compliant with ANSI and MSS standards, this valve meets rigorous industry specifications for quality and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
5.75
Specifications Carton Qty
8
Specifications Class
AK150D
Specifications Dimension D1
4.53
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
7.17
Specifications Dimension L
4.72
Specifications Dimension L1
3.53
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
