Globe Class 150 Bronze Threaded Valve
Globe Class 150 Bronze Threaded Valve
SKU:VAL-d38424
Premium Globe Class 150 Bronze Threaded Valve for precise fluid control in industrial settings.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Globe Class 150 Bronze Threaded Valve
$79.99
Quantity: 1
Claim Your Seller Account
Globe Class 150 Bronze Threaded Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe Class 150 Bronze Threaded Valve is a high-quality valve designed for reliable performance in demanding applications. Constructed with cast bronze materials and featuring a Union-Bonnet design, Inside Screw, and Rising Stem, this valve ensures secure fluid control. It boasts a G/F PTFE Disc for enhanced durability and performance. With a pressure rating of 150 PSI for Saturated Steam and 366°F, and 300 PSI for Cold Water, Oil, or Gas, this valve is suitable for a wide range of industrial settings. Its precise dimensions and premium materials make it a top choice for hose bed applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

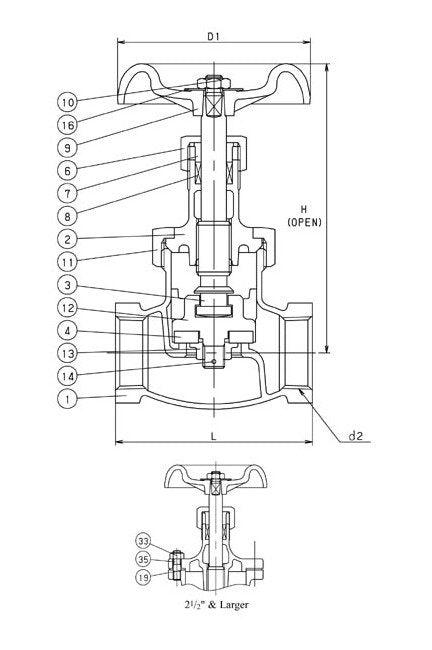

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
1.88
Specifications Carton Qty
24
Specifications Class
AK150D
Specifications Dimension D1
3.54
Specifications Dimension D1 Max
0.881
Specifications Dimension D1 Min
0.877
Specifications Dimension D2
3/4 inches
Specifications Dimension H
5.35
Specifications Dimension L
3.07
Specifications Dimension L1
2.24
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
