Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

VAL-a4385f

Durable Globe Class 150 Bronze Valve, ideal for industrial applications, meets MSS SP-80 Type 2 design standards. PSI: 150. Compatible with saturated steam. Threaded end size: 3 inches.

$149.99
$149.99
Sale

Initiate Order

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$149.99

Quantity: 1

Claim Your Seller Account

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Globe Class 150 Bronze Threaded Valve is engineered for optimal performance in industrial settings. With a pressure tolerance of up to 150 PSI for saturated steam, this valve ensures reliable operation under demanding conditions. Crafted from high-quality bronze and featuring a Rising Stem design, G/F PTFE Disc, and Union-Bonnet Inside Screw configuration, this valve guarantees durability and precision. Meeting stringent industry standards including MSS SP-80 Type 2 design and ANSI B1.20.1 threaded ends, this valve is ideal for both consumer and institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0

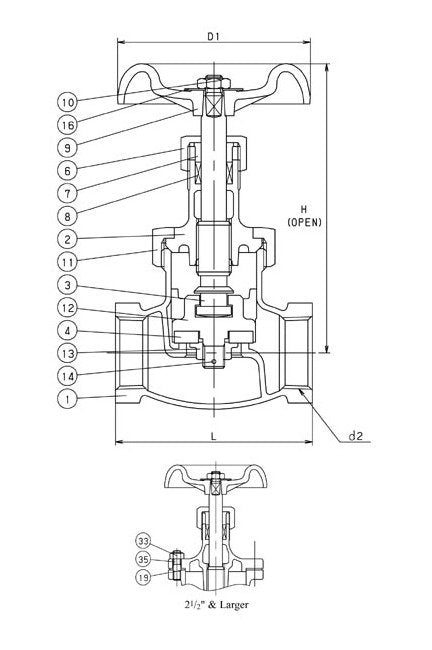

No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
28.00
Specifications Carton Qty
1
Specifications Class
AK150D
Specifications Dimension D1
7.09
Specifications Dimension D1 Max
3.133
Specifications Dimension D1 Min
3.128
Specifications Dimension D2
3 inches
Specifications Dimension H
10.83
Specifications Dimension L
7.87
Specifications Dimension L1
6.29
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
