Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

VAL-435c44

High-performance Globe Class 150 Bronze Valve for precise fluid control in hose bed applications.

$89.99
$89.99
Sale

Initiate Order

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$89.99

Quantity: 1

Claim Your Seller Account

Globe Class 150 Bronze Threaded Valve

Globe Class 150 Bronze Threaded Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience reliable fluid control with the Globe Class 150 Bronze Valve designed for durability and precision. Crafted from high-quality bronze, this valve boasts a union-bonnet, inside screw, and rising stem for seamless operation. With a G/F PTFE disc, it offers excellent performance in various applications. Meeting ANSI standards and built to withstand high pressures and temperatures, this valve is ideal for hose bed applications and ensures long-term reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

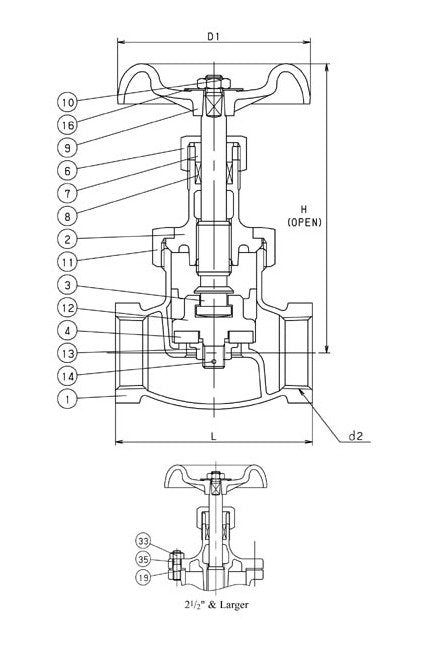

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
10.50
Specifications Carton Qty
4
Specifications Class
AK150D
Specifications Dimension D1
5.31
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
8.23
Specifications Dimension L
5.71
Specifications Dimension L1
4.41
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
