Globe Class 150 Bronze Valve - Solder End, 1 inch

Globe Class 150 Bronze Valve - Solder End, 1 inch

VAL-09e25c

Reliable Globe Class 150 Bronze Valve for industrial usage. Solder End, 1 inch. ANSI & MSS compliant.

$79.99
$79.99
Sale

Initiate Order

Globe Class 150 Bronze Valve - Solder End, 1 inch

Globe Class 150 Bronze Valve - Solder End, 1 inch

$79.99

Quantity: 1

Claim Your Seller Account

Globe Class 150 Bronze Valve - Solder End, 1 inch

Globe Class 150 Bronze Valve - Solder End, 1 inch

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your industrial operations with the Globe Class 150 Bronze Valve. This valve boasts a pressure/temperature rating of 150 PSI - Saturated Steam to 366°F, making it ideal for various applications. Crafted from high-quality cast bronze materials, including bronze stem and disc, guaranteeing durability and performance. Compliant with ANSI, MSS, and military standards, this valve ensures reliable and safe operation in challenging environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
3.13
Specifications Carton Qty
16
Specifications Class
C150D

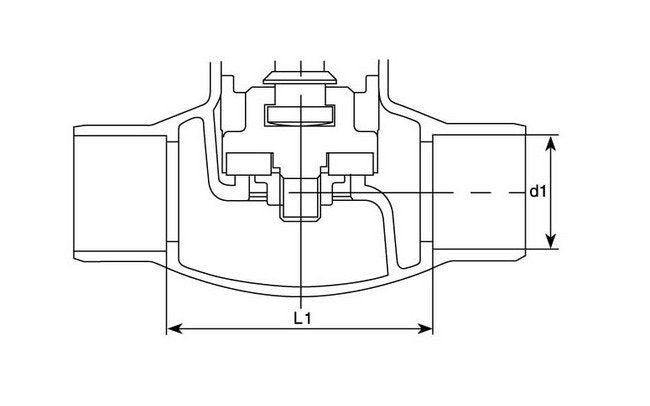

Specifications Dimension D1
3.94
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
5.87
Specifications Dimension L
3.54
Specifications Dimension L1
2.59
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
