Globe Class 150 Bronze Valve - Threaded End 1 1/4 inches
Globe Class 150 Bronze Valve - Threaded End 1 1/4 inches
SKU:VAL-0bea7a
High-quality Globe Class 150 Bronze Valve for precise fluid control in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Globe Class 150 Bronze Valve - Threaded End 1 1/4 inches
$89.99
Quantity: 1
Claim Your Seller Account
Globe Class 150 Bronze Valve - Threaded End 1 1/4 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe Class 150 Bronze Valve is designed for reliable performance in a variety of applications. With a union-bonnet, inside screw, and rising stem construction, this valve ensures secure operation under high pressures up to 150 PSI for saturated steam and 300 PSI for cold water, oil, or gas. The G/F PTFE disc offers excellent resistance to corrosion and wear over time. Made from high-quality cast bronze materials, this valve provides durability and longevity essential for demanding industrial environments. Compliant with MSS SP-80 Type 2 design standards, this valve ensures precision and consistency in fluid control operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

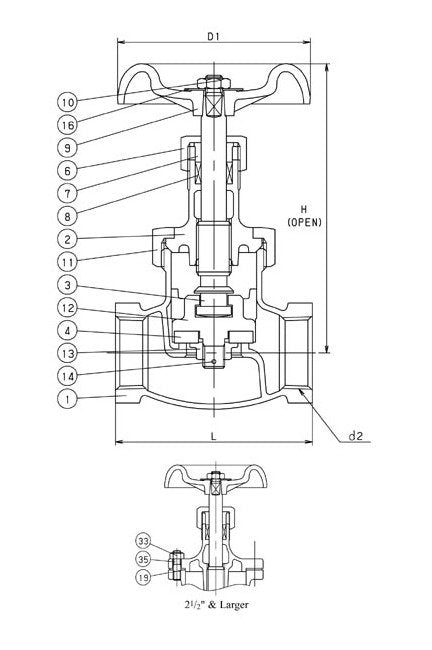

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
4.42
Specifications Carton Qty
12
Specifications Class
AK150D
Specifications Dimension D1
4.53
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
6.81
Specifications Dimension L
4.13
Specifications Dimension L1
3.02
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
