Globe Class 150 Bronze Valve - Threaded End, 1 inch
Globe Class 150 Bronze Valve - Threaded End, 1 inch
SKU:VAL-b00bda
Reliable Globe Class 150 Bronze Valve for steam and fluid control, ANSI/MSS compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Globe Class 150 Bronze Valve - Threaded End, 1 inch
$89.99
Quantity: 1
Claim Your Seller Account
Globe Class 150 Bronze Valve - Threaded End, 1 inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe Class 150 Bronze Valve is designed to handle pressures up to 150 PSI and temperatures ranging from saturated steam to 366°F. With a union-bonnet, inside screw, and rising stem construction, this valve ensures reliable performance in various applications. It features a G/F PTFE disc for tight shut-off and efficient flow control, along with durable bronze material construction. Compliant with ANSI and MSS standards, this valve meets the high-quality requirements of government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

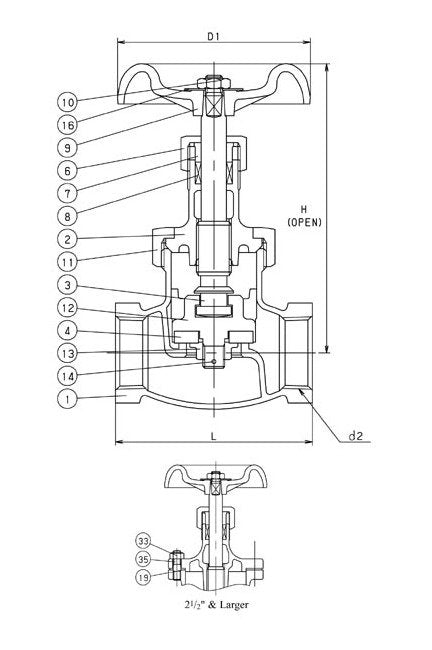

No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
3.13
Specifications Carton Qty
16
Specifications Class
AK150D
Specifications Dimension D1
3.94
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
5.87
Specifications Dimension L
3.54
Specifications Dimension L1
2.59
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
