Globe Class 150 Bronze Valve - Threaded End, 150 PSI
Globe Class 150 Bronze Valve - Threaded End, 150 PSI
SKU:VAL-506111
Durable Globe Class 150 Bronze Valve for various applications. Union-Bonnet design, G/F PTFE Disc, compliant with ANSI & MSS standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Globe Class 150 Bronze Valve - Threaded End, 150 PSI
$59.99
Quantity: 1
Claim Your Seller Account
Globe Class 150 Bronze Valve - Threaded End, 150 PSI
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe Class 150 Bronze Valve is a robust and reliable valve designed for a wide range of applications, from saturated steam to cold water, oil, or gas services. Constructed with high-quality materials including cast bronze and G/F PTFE disc, it ensures durability and exceptional performance. This valve features a union-bonnet design, inside screw, rising stem, and pressure/temperature capabilities meeting institutional standards like ANSI B1.20.1 and MSS SP-80, Type 2.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

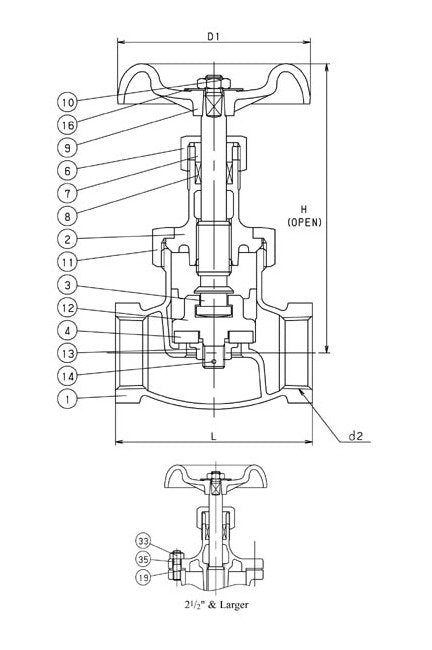

Material List 0
No. Name of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Bonnet Cast Bronze (ASTM B62) 3 Stem Cast Bronze (ASTM B62) 4 Disc G/F PTFE 6 Packing Nut Forged Brass (B283, C37700) 7 Gland Brass Rod (B16) 8 Gland Packing Aramid Fibers with Graphite 9 Hand Wheel (1/4 - 1/2) Zinc Die-Cast (B86) (3/4 - 21/2) Aluminum Die-Cast (B85) -3 Ductile Iron (A536) 10 Wheel Nut Brass Rod (B16) 11 Bonnet Ring (1/4 - 2) Cast Bronze (B62) 12 Disc Holder Cast Bronze (B62) 13 Disc Nut (1/4 - 3/4) Brass Rod (B16) (1 - 3) Forged Brass (B283, C37700) 14 Split Pin Copper 16 Name Plate Aluminum 19 Gasket Aramid Fiber Sheet 33 Bonnet Nut Brass Rod (B16) 35 Bonnet Bolt Carbon Steel
Specifications Approx Net Wt
0.96
Specifications Carton Qty
48
Specifications Class
AK150D
Specifications Dimension D1
2.36
Specifications Dimension D1 Max
0.381
Specifications Dimension D1 Min
0.377
Specifications Dimension D2
1/4 inches
Specifications Dimension H
4.29
Specifications Dimension L
2.09
Specifications Dimension L1
1.66
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F - Fluid To 406°F | 300 PSI Non-shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, Type 2 Military MSS SP-80, Type 2
