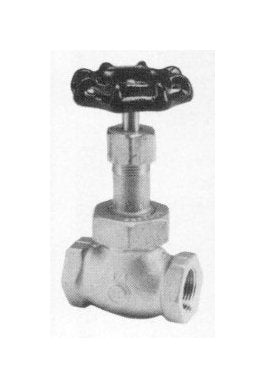

Globe IB412 Bronze Globe & Gate Valve
Globe IB412 Bronze Globe & Gate Valve
SKU:VAL-bf7dc2
Enhance efficiency and reliability with the Globe IB412 Bronze Globe & Gate Valve, featuring durable bronze construction and precise design conforming to MSS SP-80 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Globe IB412 Bronze Globe & Gate Valve
$99.99
Quantity: 1
Claim Your Seller Account
Globe IB412 Bronze Globe & Gate Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe IB412 Bronze Globe & Gate Valve is a high-performance valve designed for general service applications in institutional environments. With a working pressure of 300 lb. SWP and 600 lb. WOG (Non-Shock), this valve features a regrinding disc, union bonnet, and gland packed design for optimal performance. Its bronze construction ensures durability and reliability, conforming to MSS SP-80 Type 1, Class 300 standards with threaded ends. The integrated disc and stem enhance precision, making it a versatile choice for various industrial settings.
Product Specifications
Material List 0

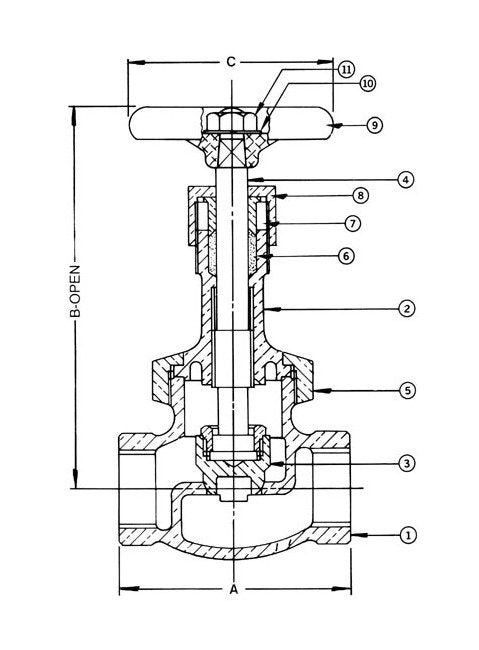

No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
107.95 mm
Specifications Dimension B
177.80 mm
Specifications Dimension C
95.25 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
