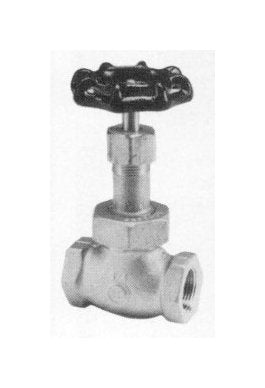

Globe IB412 Bronze Globe Valve
Globe IB412 Bronze Globe Valve
SKU:VAL-252f76
Reliable Globe IB412 Bronze Globe Valve for 300 lb. SWP & 600 lb. WOG. Compliant with MSS SP-80 Type 1, Class 300 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Globe IB412 Bronze Globe Valve
$99.99
Quantity: 1
Claim Your Seller Account
Globe IB412 Bronze Globe Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe IB412 Bronze Globe Valve is a high-quality valve suitable for industrial applications requiring 300 lb. SWP and 600 lb. WOG (Non-Shock) ratings. Made of durable bronze, this valve features a regrinding disc, union bonnet, and threaded ends for easy installation. Compliant with MSS SP-80 Type 1, Class 300 standards, the integral disc and stem design ensure reliable performance. With precise dimensions and quality materials like Bronze, Brass, and Non-Asbestos packing, this valve is a dependable choice for demanding environments.
Product Specifications

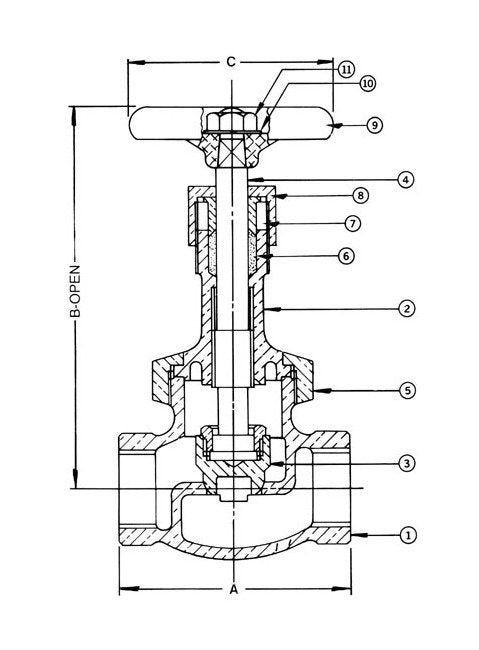

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
74.63 mm
Specifications Dimension B
131.78 mm
Specifications Dimension C
69.85 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
